Home >> GMC >> 2021 >> Yukon AT4 >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Power, Ground, Serial Data, and Subsystem References

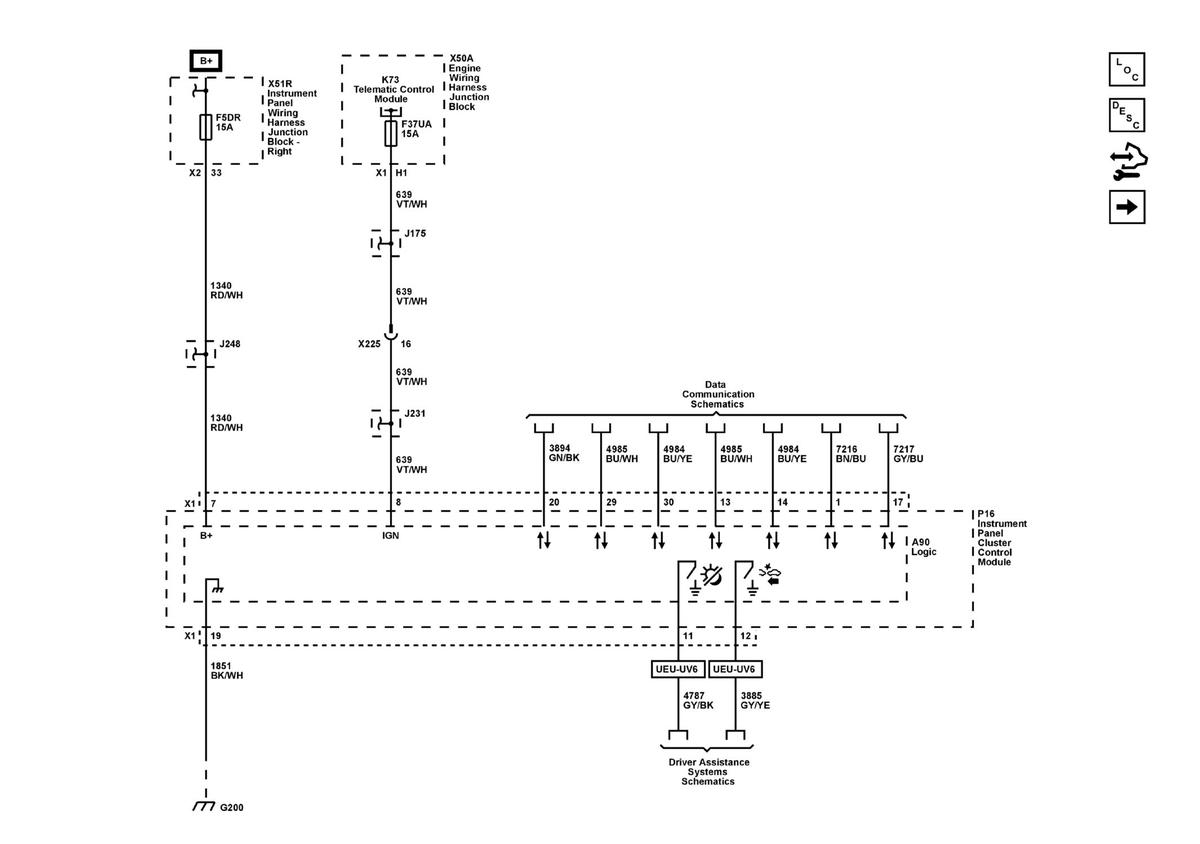

Power, Ground, Serial Data, and Subsystem References

GM5371167Courtesy of GENERAL MOTORS COMPANY
