Removal Procedure

  1. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Remove

  2. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  3. Instrument Panel Fuse Block Access Hole Cover (1) - Remove
  4. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Remove

  5. Using a flat-bladed plastic trim tool, release the retaining clips.
  6. Disconnect the electrical connectors.
  7. Instrument Panel Trim Pad (2) - Remove

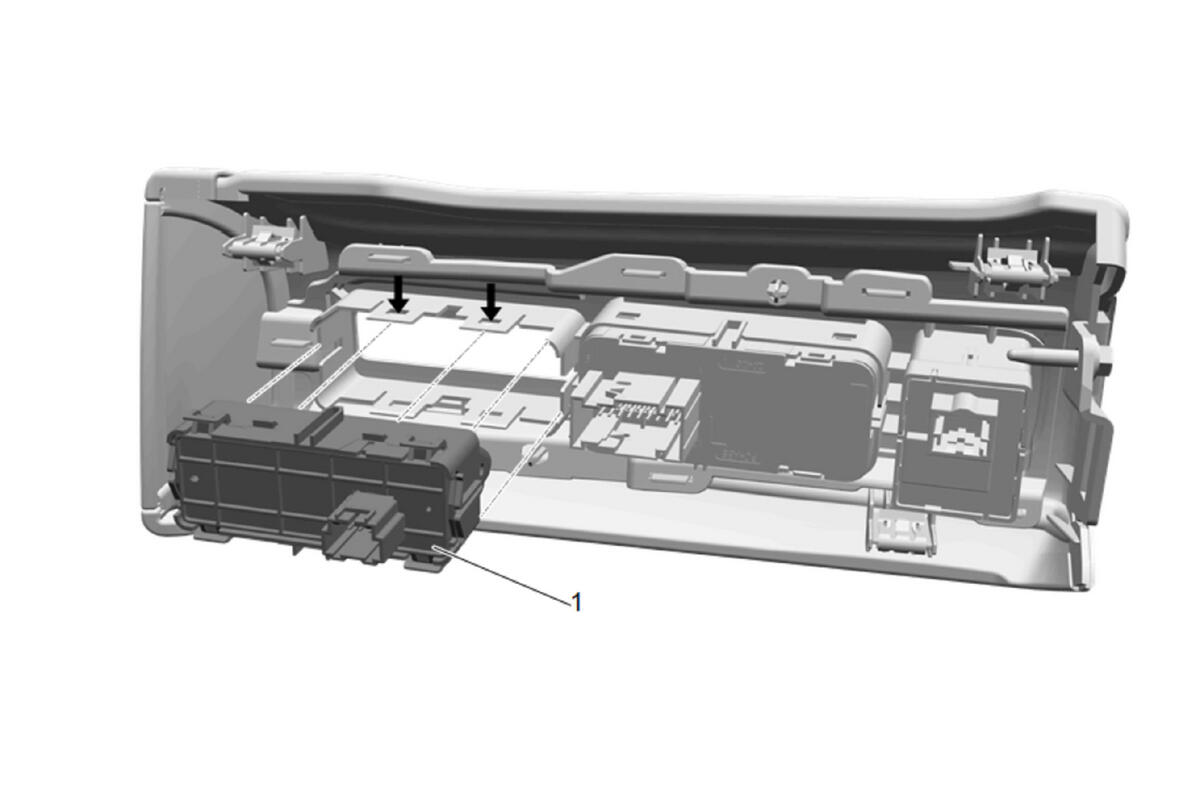

  8. GM5607369Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tabs.

  9. Head-Up Display Switch (1) - Remove
