Installation Procedure

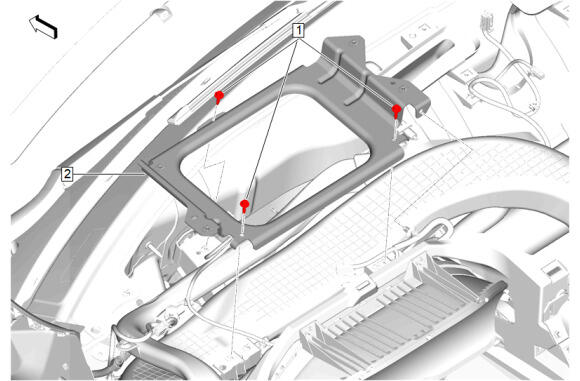

  1. GM5580361Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Bracket (2) - Install

  2. Connect and position the wiring harness.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Head-Up Display Bracket Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

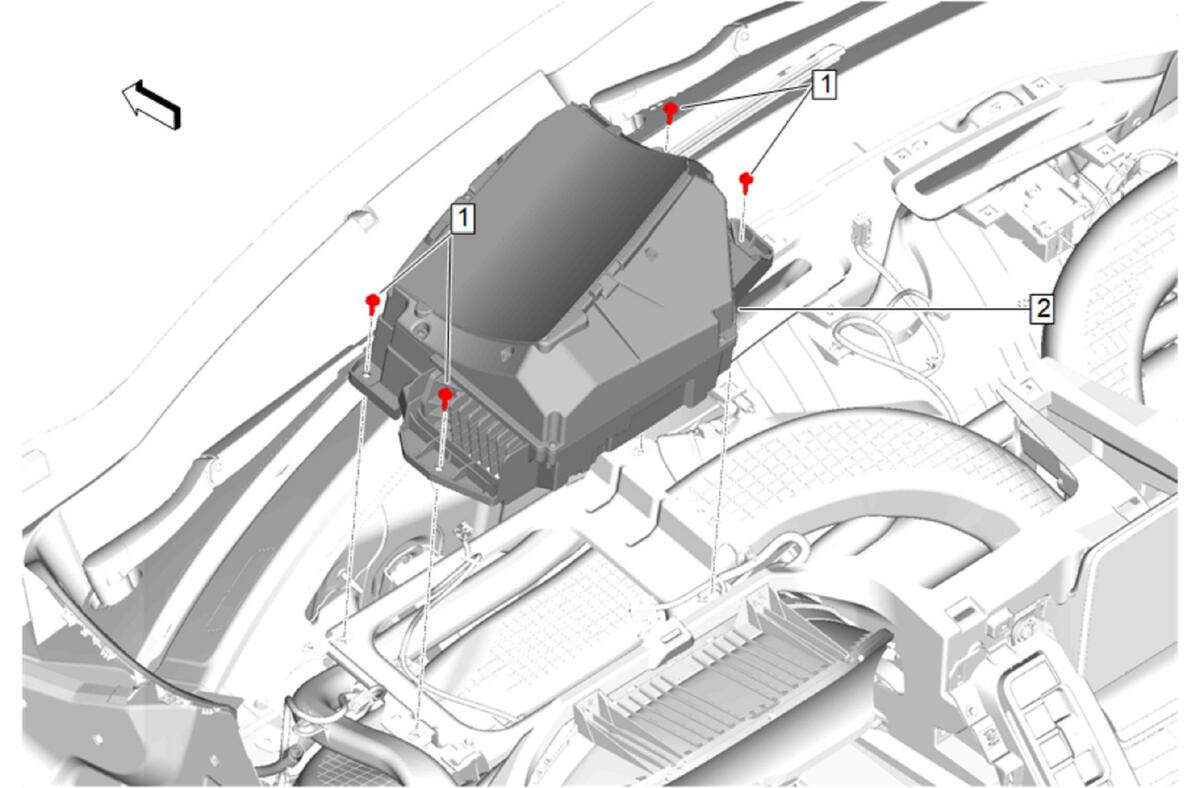

  4. GM5580360Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

    5. NOTE:

    Ensure that each tab on the head-up display is properly seated in the mating hole for proper alignment.

  5. Head-Up Display (2) - Install
  6. Head-Up Display Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications
  7. GM5523097Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Removal and Installation (without Denali)

  8. Enable the SIR System. SIR Disabling and Enabling
