Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

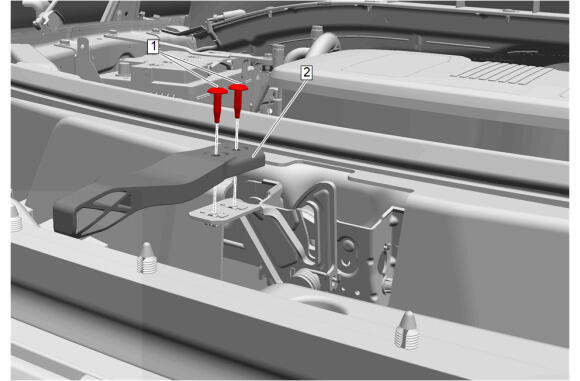

Hood Latch Actuator Bolt (1) - Remove [ 2x ]
Hood Secondary Latch Release Handle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Inlet Grille Panel Retainer (1) - Remove [ 9x ]
Intake Air Splash Shield (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using an appropriate tool, release the 3 ambient air temperature sensor detents to release the ambient air temperature sensor from the front bumper shutter
Courtesy of GENERAL MOTORS COMPANY

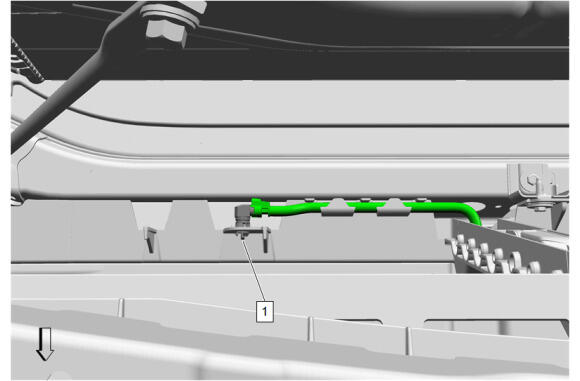

Ambient Air Temperature Sensor (1) - Remove
Disconnect the electrical connector. (2)
