Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Raise the transmission with the transmission jack and position the transmission to the engine.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the transmission bolts (1, 2, 3) and tighten to 58 N.m (43 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Install the front transmission to engine bolt (1, 2) and tighten to 58 N.m (43 lb ft).
Install the oil pump flow control valve heat shield, if equipped. Oil Pump Flow Control Valve Heat Shield Replacement
Remove the transmission jack.
Align the mark of the flywheel to the mark on the torque converter for reassembly.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
If reusing the torque converter bolts, clean the threads and apply threadlocker to the threads prior to installation. Adhesives, Fluids, Lubricants, and Sealers

Install the torque converter to flywheel bolts (1) and tighten to 60 N.m (44 lb ft).
Install the three way catalytic converter. Warm Up Three-Way Catalytic Converter Replacement (LYX) , or Warm Up Three-Way Catalytic Converter Replacement (LTG)
Install the starter. Starter Replacement (LYX - AWD) , or Starter Replacement (LYX - FWD) , or Starter Replacement (LTG - AWD) , or Starter Replacement (LTG - FWD)
Install the left transmission mount to the transmission. Transmission Mount Replacement (Left Side M3U) , or Transmission Mount Replacement (Left Side M3D/M3H)
Install the wheel drive shafts to the transmission. Front Wheel Drive Half Shaft Replacement - Left Side , and Front Wheel Drive Half Shaft Replacement - Right Side (AWD) , or Front Wheel Drive Half Shaft Replacement - Right Side (M3U, MHG, MNH, MNK with FWD) , or Front Wheel Drive Half Shaft Replacement - Right Side (M3D, M3H with FWD)
Install the drivetrain and front suspension cradle. Drivetrain and Front Suspension Cradle Replacement (Front Wheel Drive) , or Drivetrain and Front Suspension Cradle Replacement (All Wheel Drive)
Install the transmission mount strut bracket to the transmission. Transmission Mount Strut Bracket Replacement (All Wheel Drive) , or Transmission Mount Strut Bracket Replacement (Front Wheel Drive)
Remove the engine support fixture. Engine Support Fixture
Courtesy of GENERAL MOTORS COMPANY

Install the upper transmission to engine bolts (1, 2, 3) and tighten to 58 N.m (43 lb ft).
Courtesy of GENERAL MOTORS COMPANY

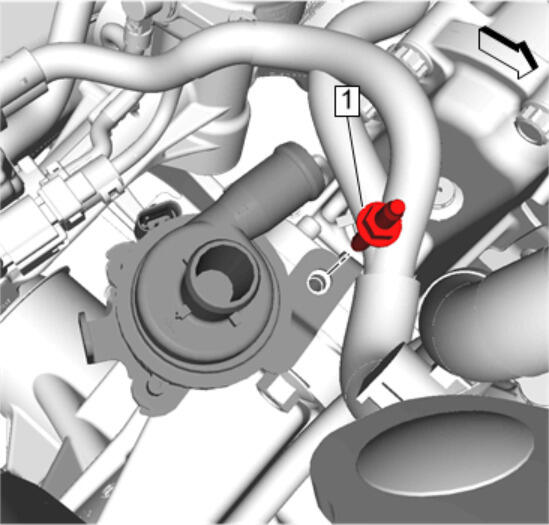

Auxiliary Water Pump Bracket Bolt(1)Auxiliary Water Pump - Install - Auxiliary Water Pump Replacement (LYX with KL9) , or Auxiliary Water Pump Replacement (LTG with KL9)
Courtesy of GENERAL MOTORS COMPANY

Connect the control valve body transmission control module electrical connector (1), then clip the wiring harness to the cover.
Courtesy of GENERAL MOTORS COMPANY

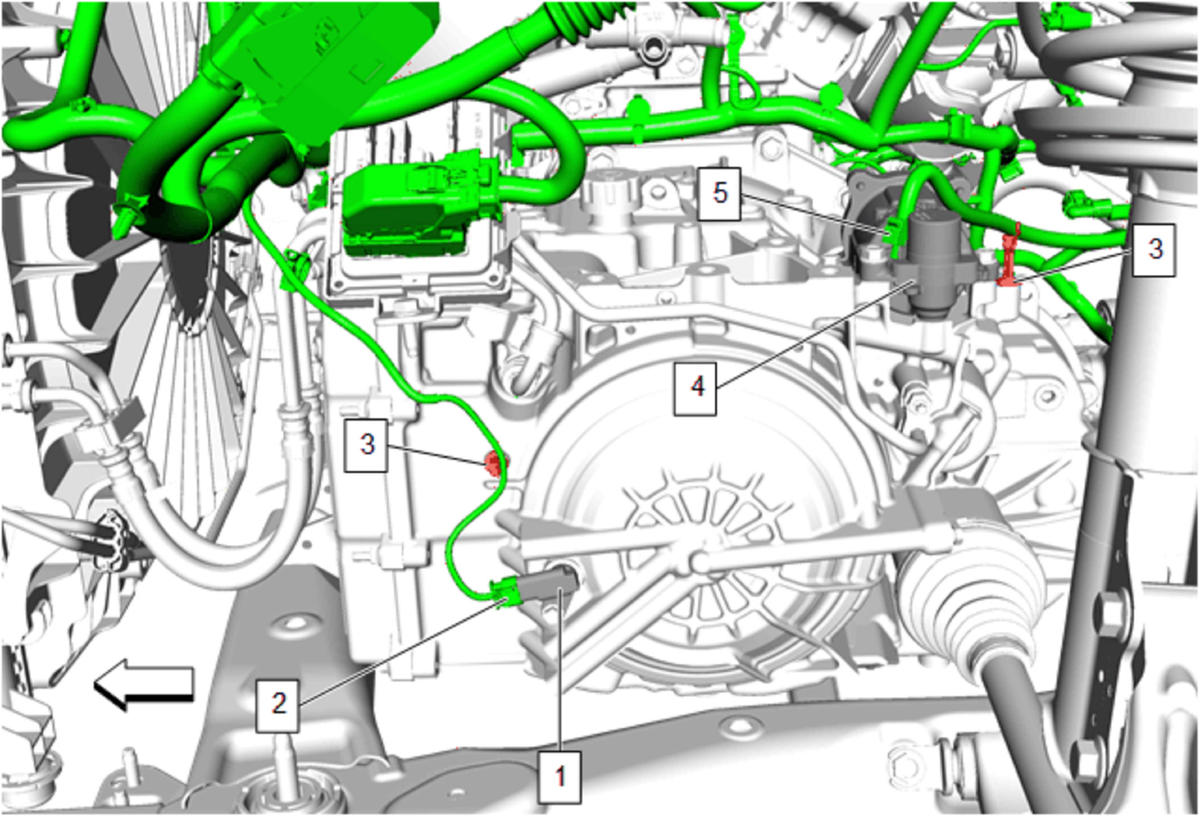

Connect the electrical connector (2) to the transmission input speed sensor (1).
Connect the electrical connector (5) to the auxiliary fluid accumulator (4).
Install the 2 engine wiring harness retainers (3).
Install the transmission range select lever cable to the transmission. Automatic Transmission Range Selector Lever Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the transmission fluid cooler outlet pipes (2) to the transmission. Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG/LYX)
Install the transmission fluid cooler inlet pipe nut (1) to the transmission and tighten to 9 N.m (80 lb in).
Clip the engine wiring harness to the transmission.
Adjust the automatic transmission range selector lever cable. Range Selector Lever Cable Adjustment
Fill the transmission with fluid. Transmission Fluid Drain and Fill
If a NEW TCM has been installed into the vehicle, the NEW module needs to be reprogrammed. Service Programming System (SPS)
Reprogram the transmission. Solenoid Valve Characterization Reprogramming
Road test the vehicle.
