Removal Procedure

WARNING: This page is about a different car, the 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the park brake.
  2. Remove the front floor console. Front Floor Lower Console Replacement (Equinox)
  3. Disconnect the automatic transmission range selector lever cable from the transmission control. Range Selector Lever Cable Replacement
  4. Disconnect the transmission control electrical connector.

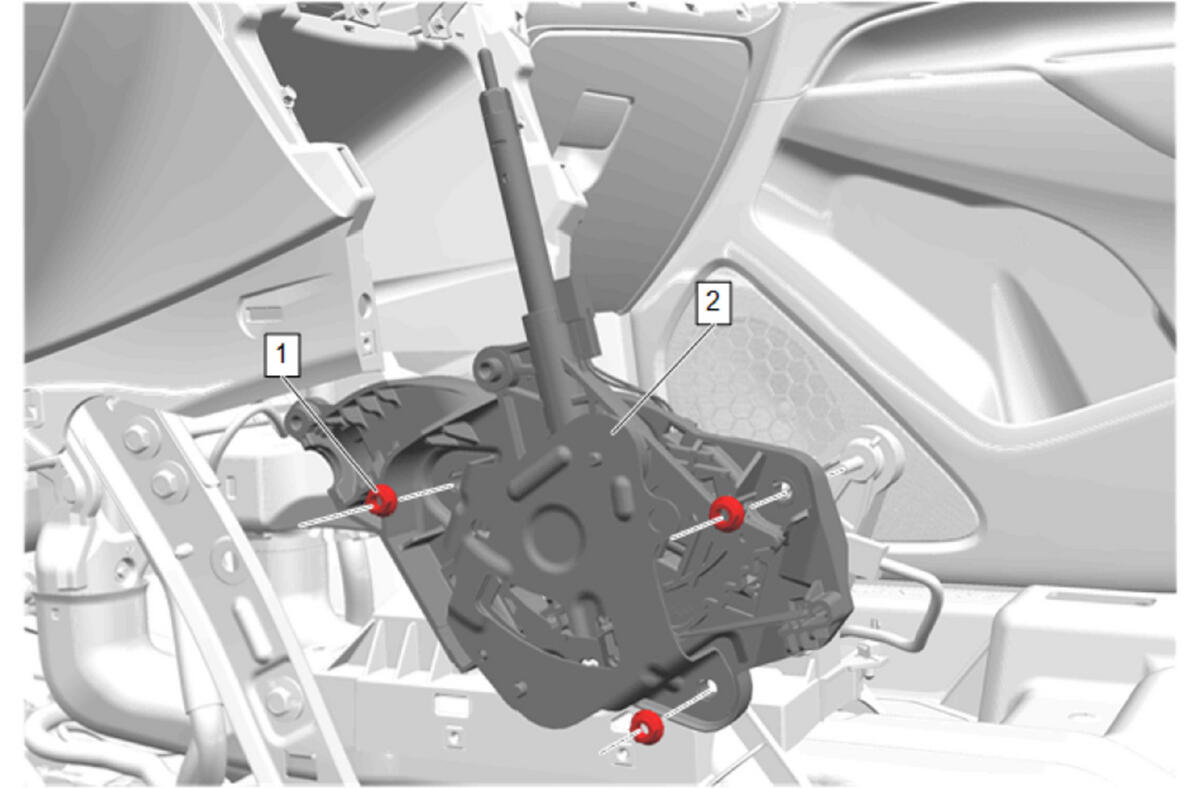

  5. GM5862573Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Control Nut (1) - Remove [ 3x ]

  6. Automatic Transmission Control (2) - Remove
