Output Speed Sensor Replacement

WARNING: This page is about a different car, the 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

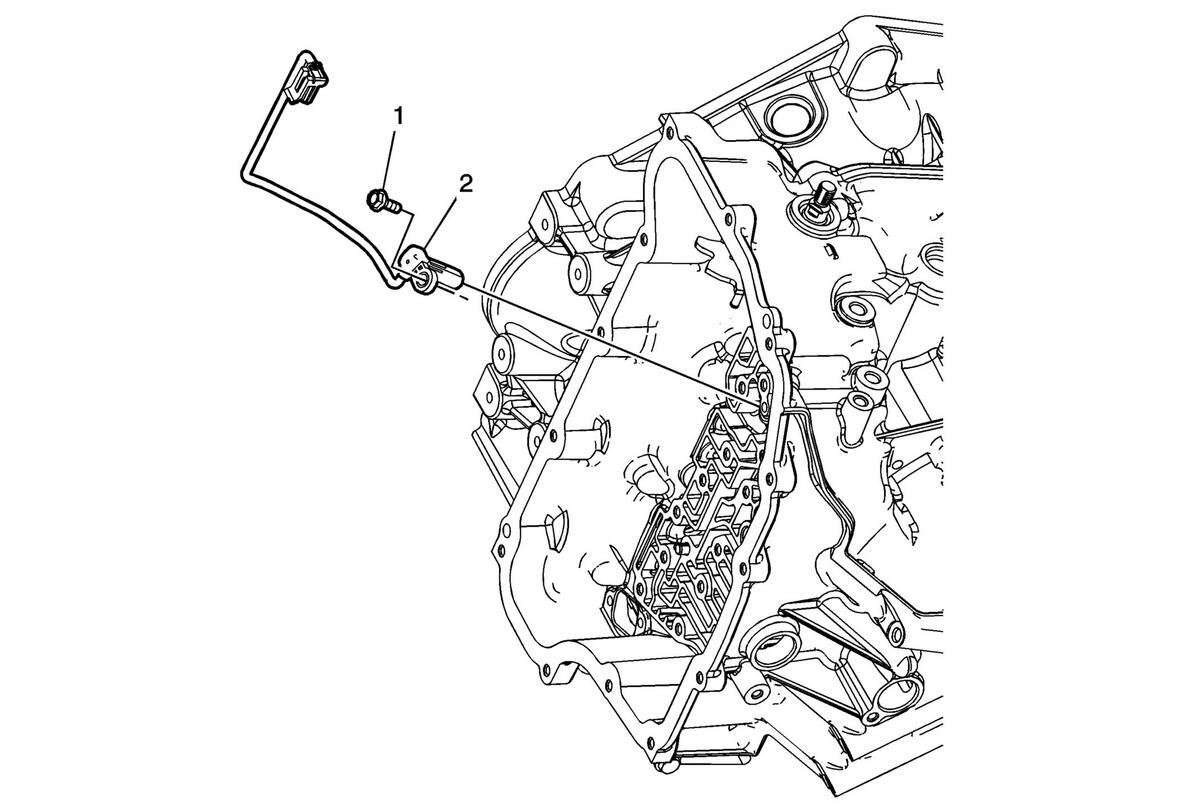

Callout	Component Name
Preliminary Procedures Remove the control solenoid valve and transmission control module assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement . Perform the service fast learn adapt procedure.
1	Output Speed Sensor Bolt M6 x 18 CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Output Speed Sensor

Callout

Component Name

Preliminary Procedures

Remove the control solenoid valve and transmission control module assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement .
Perform the service fast learn adapt procedure.

Output Speed Sensor Bolt M6 x 18

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Output Speed Sensor
