Power, Ground, Serial Data, MIL and Fluid Temperature

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

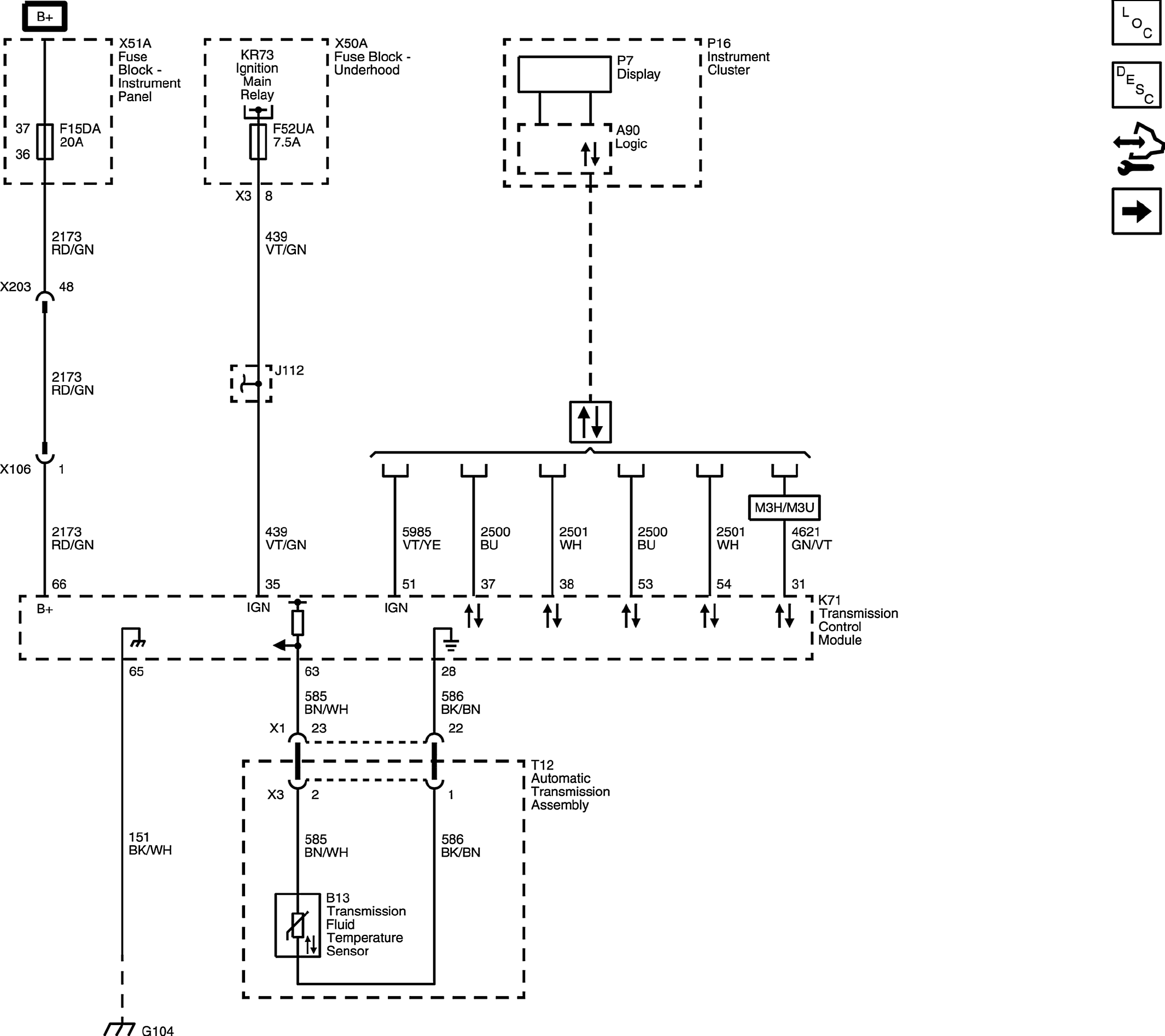

GM5171712Courtesy of GENERAL MOTORS COMPANY
