Home >> GMC >> 2021 >> Terrain SLT, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Air Temperature and Driver Information Center

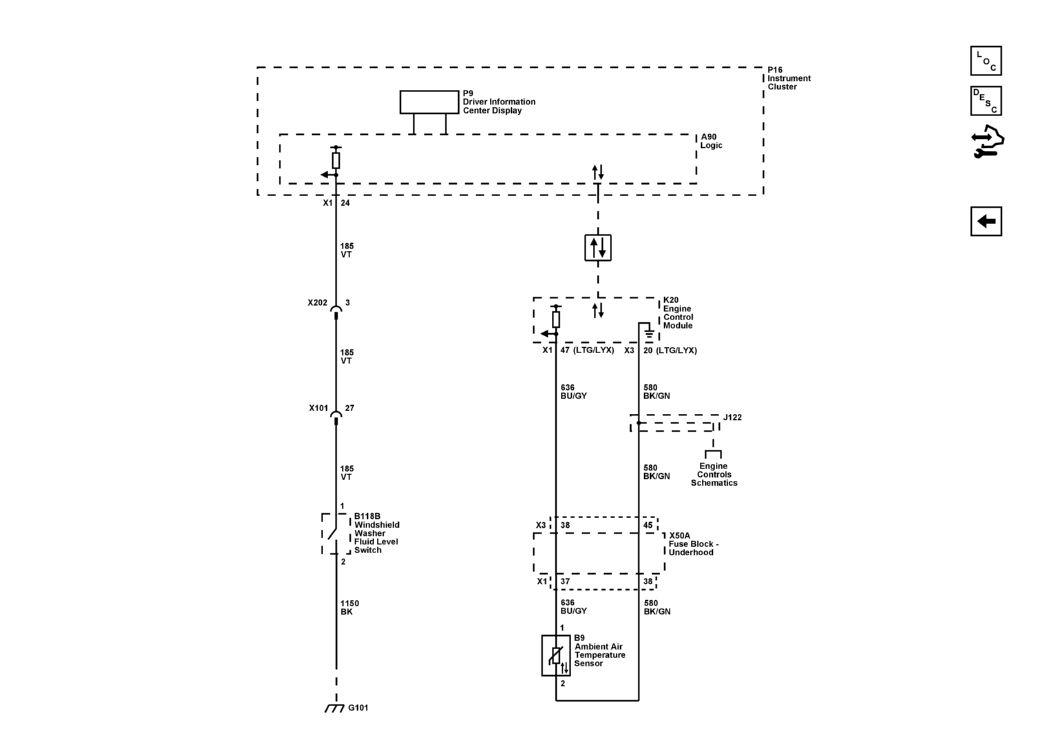

Air Temperature and Driver Information Center

GM5491153Courtesy of GENERAL MOTORS COMPANY
