Multifunction Power Supply Converter Replacement (Equinox)

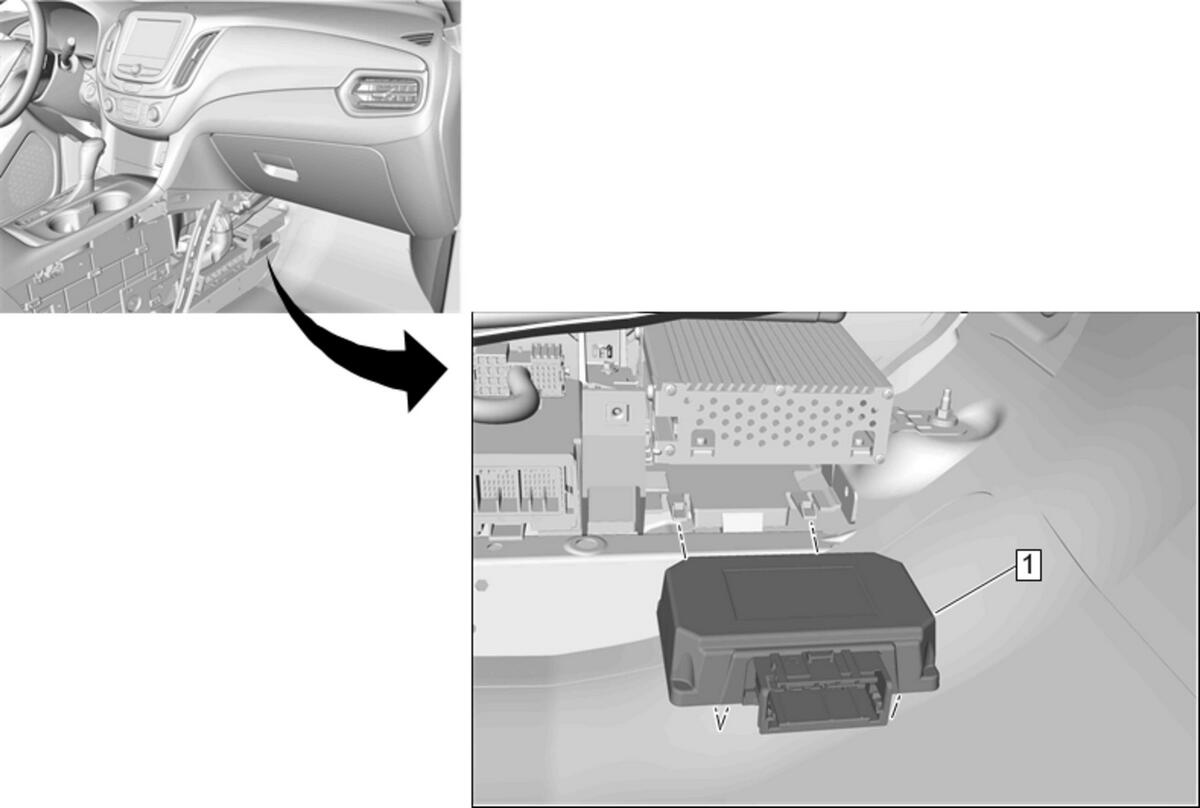

GM4581127Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Extension Panel Replacement - Right Side (Equinox)
Front Floor Console Extension Panel Replacement - Right Side (Terrain)
1 Multifunction Power Supply Converter

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
