X81 Accessory Power Receptacle - 110V AC X1 (KI6)
 Courtesy of GENERAL MOTORS COMPANY
|

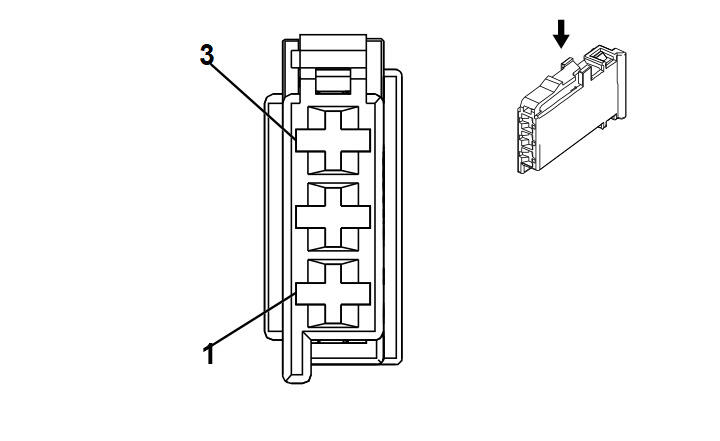

Connector Part Information
- Harness Type: Floor Console Harness
- OEM Connector: 24427883
- Service Connector: Service by Harness -
- Description: 3 -Way F 1.6 Micro-Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT |
4083 |
Retained Accessory Power Relay 2 Coil Control |
I |
KI6 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
BK |
5683 |
120V AC Phase A |
I |
KI6 |
