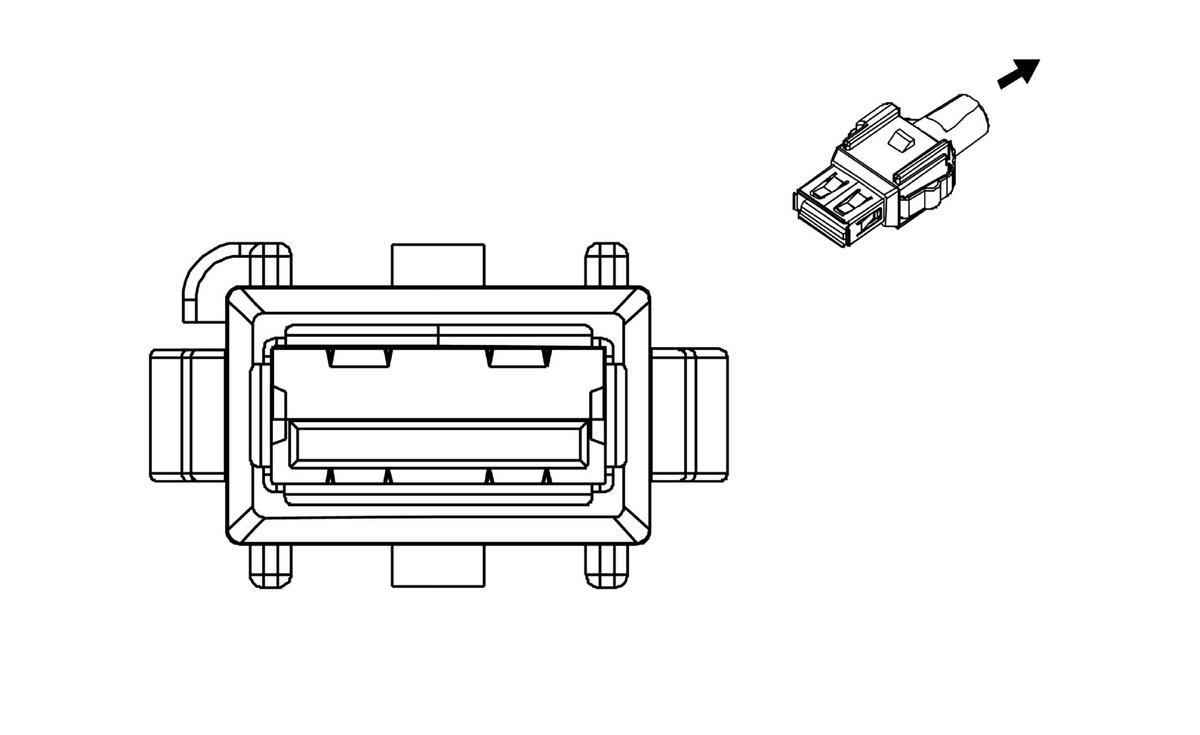

X22 USB Drive Data Connector (IOR+UDD)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Instrument Panel Harness USB OEM Connector: 13578986 Service Connector: Service by Cable Assembly - Description: 5 -Way F USB Type (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	No Tool Required	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
-	-	USB	-	USB Serial Data	I	-
