T8C Ignition Coil 3 (LTG)
 Courtesy of GENERAL MOTORS COMPANY
|

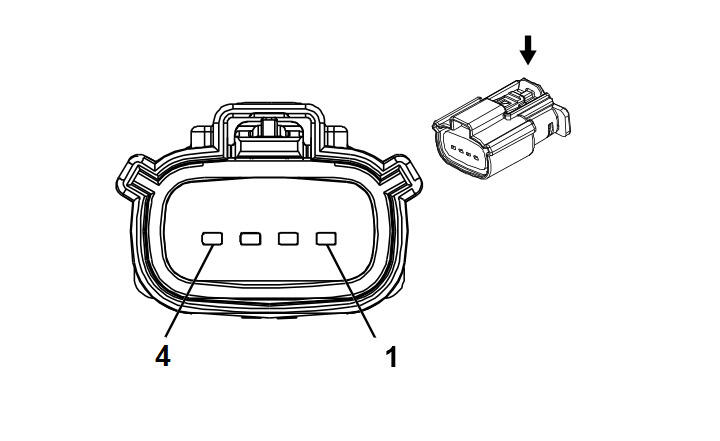

Connector Part Information
- Harness Type: Engine Harness
- OEM Connector: 13577579
- Service Connector: Not Available
- Description: 4 -Way F 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
450 |
Ground |
I |
LTG |
| 2 |
0.5 |
BK / BU |
2129 |
Ignition Control Low Reference Bank 1 |
I |
LTG |
| 3 |
0.5 |
GN / BU |
2123 |
Ignition Control 3 |
I |
LTG |
| 4 |
0.75 |
VT / BU |
5291 |
Powertrain Main Relay Fused Supply Voltage 2 |
I |
LTG |
