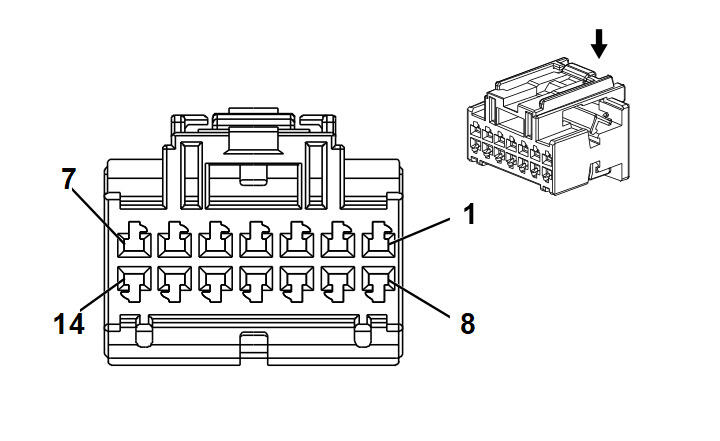

T12 Automatic Transmission Assembly X2 (M3D)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Transmission Harness
- OEM Connector: 13595443
- Service Connector: Service by Harness -
- Description: 14 -Way F 1.2 MCON Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE / GN |
4171 |
Transmission Input Shaft Speed Sensor Circuit 9V Reference |
I |
- |
| 2 |
0.5 |
GY / BU |
6358 |
Output Speed Signal |
I |
- |
| 3 |
0.5 |
WH |
4508 |
Transmission Clutch G Control |
I |
- |
| 4 |
0.5 |
WH / BU |
4507 |
Transmission Clutch H Control |
I |
- |
| 5 |
0.5 |
GY / BK |
5501 |
TCC/Clutch Select Solenoid Valve Control |
I |
- |
| 6 |
0.5 |
WH |
1971 |
Transmission Oil Level Sensor Signal |
I |
- |
| 7 - 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.5 |
GN / GY |
6387 |
Transmission High Side Driver 1 Control |
I |
- |
