T10K Keyless Entry Antenna - Center Console Rear
 Courtesy of GENERAL MOTORS COMPANY
|

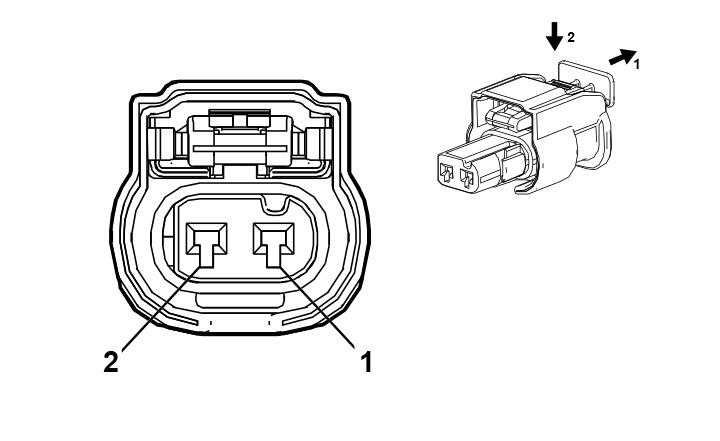

Connector Part Information
- Harness Type: Floor Console Harness
- OEM Connector: 13509967
- Service Connector: Service by Harness -
- Description: 2 -Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU |
3554 |
Interior Passive Entry Antenna 2 High Signal |
I |
- |
| 2 |
0.35 |
GY / BK |
3555 |
Interior Passive Entry Antenna 2 Low Signal |
I |
- |
