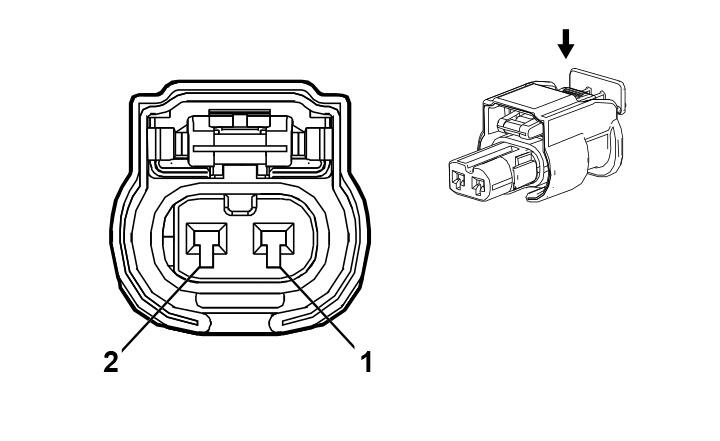

T10E Keyless Entry Antenna - Rear Compartment
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Harness
- OEM Connector: 13509968
- Service Connector: Not Available
- Description: 2 -Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH / GN |
3556 |
Interior Passive Entry Antenna 3 High Signal |
I |
- |
| 2 |
0.35 |
GN |
3557 |
Interior Passive Entry Antenna 3 Low Signal |
I |
- |
