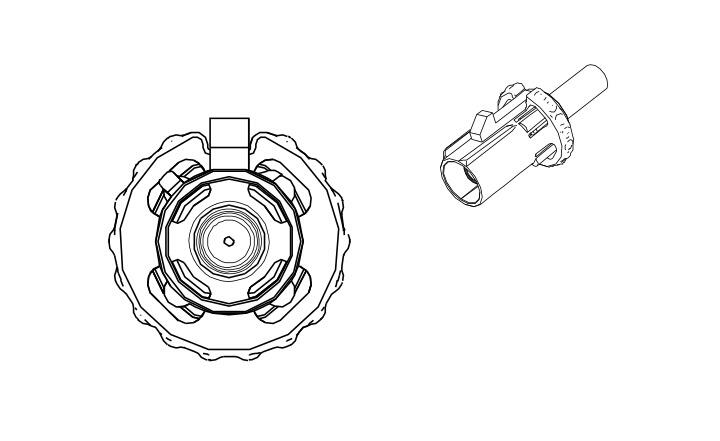

T2RR Antenna - Roof Rear X1

GM4109605Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Antenna Jumper Harness COAX
  • OEM Connector: Not Available
  • Service Connector: Service by Cable Assembly -
  • Description: 1 -Way Coax Type
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required No Tool Required No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
- - Coax Cable - (AM/FM) Antenna RF Signal I -
