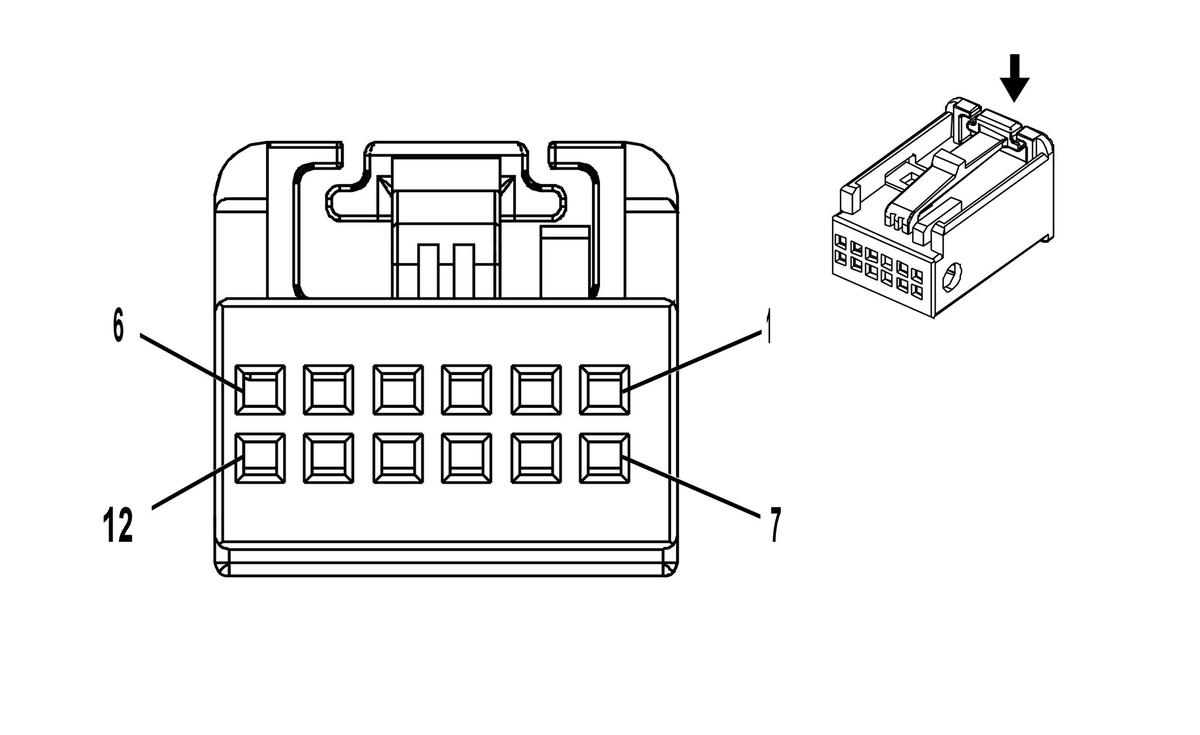

S70L Steering Wheel Controls Switch - Left (-EPH)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Steering Wheel Harness
- OEM Connector: 13578797
- Service Connector: Service by Harness -
- Description: 12 -Way F 0.64 GET Series (BK with NA Case)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
1650 |
Ground |
I |
- |
| 2 |
0.35 |
GY |
5737 |
Distance Sensing Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 3 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 4 |
0.5 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
RD / BU |
2540 |
Battery Positive Voltage |
I |
- |
| 7 |
0.35 |
GN / RD |
5884 |
Steering Wheel Heating Switch LED Control |
I |
- |
| 8 |
0.35 |
BU / RD |
5883 |
Steering Wheel Heating Switch Signal |
I |
- |
| 9 |
0.35 |
BN / GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 10 |
0.35 |
GY / GN |
5737 |
Distance Sensing Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 11 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
- |
| 12 |
0.35 |
WH / RD |
1444 |
12V Reference |
I |
- |
