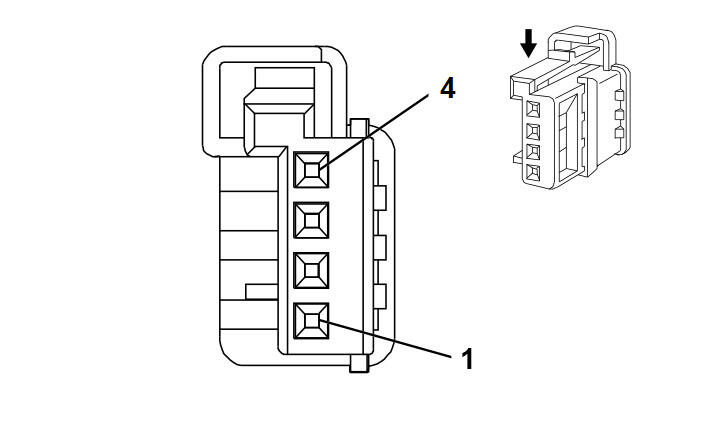

S32D Seat Heating Switch - Driver (KA1)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Floor Console Harness
- OEM Connector: 13271139
- Service Connector: Service by Harness -
- Description: 4 -Way F 0.64 Micro-Quadlock Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
2250 |
Ground |
I |
Z88+(KA1/KA6) |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GN / WH |
4115 |
Body Control Module LIN Bus 5 |
I |
Z88+(KA1/KA6) |
| 4 |
0.35 |
RD / YE |
2340 |
Battery Positive Voltage |
I |
Z88+(KA1/KA6) |
