S3 Transmission Shift Lever
 Courtesy of GENERAL MOTORS COMPANY
|

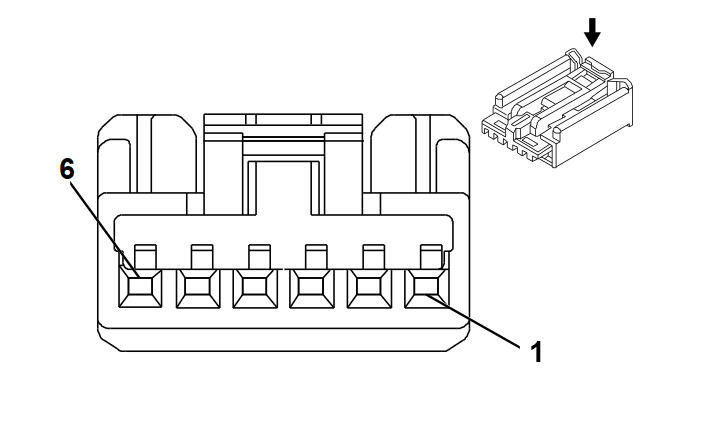

Connector Part Information
- Harness Type: Transmission Shift Lever Harness
- OEM Connector: 15269798
- Service Connector: Service by Harness -
- Description: 6 -Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
- |
BK |
2250 |
Ground |
I |
- |
| 3 |
- |
VT / YE |
5526 |
Tap Up/Tap Down Switch Signal |
I |
- |
| 4 |
- |
VT / BK |
7553 |
Park Lock Solenoid Actuator Control |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
- |
WH / VT |
5905 |
Key Capture/Column Lock Shift Position Signal |
I |
- |
