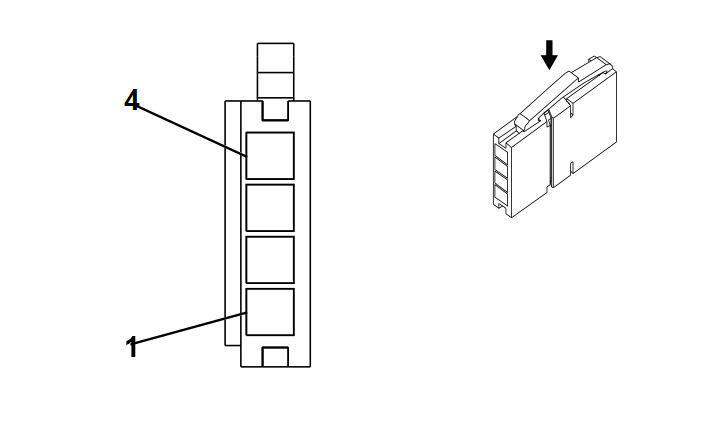

S25 Garage Door Opener (UG1)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Jumper Harness
- OEM Connector: 13583930
- Service Connector: Service by Harness -
- Description: 4 -Way F 0.50 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / BU |
2540 |
Battery Positive Voltage |
I |
UG1 |
| 2 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
UG1 |
| 3 |
- |
- |
- |
- |
I |
- |
| 4 |
0.35 |
BK |
2050 |
Ground |
I |
UG1 |
