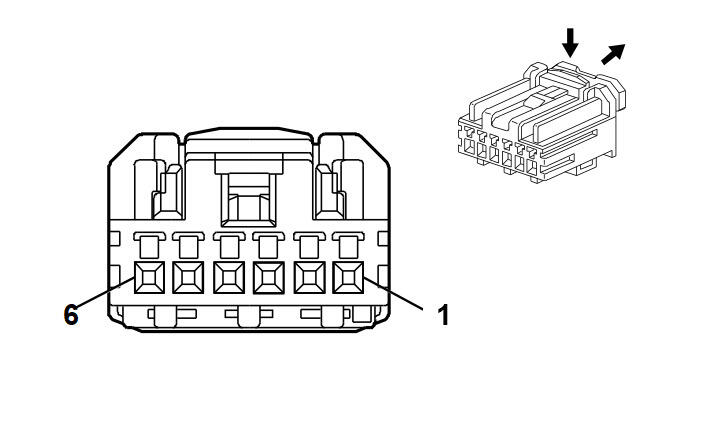

S13D Door Lock Switch - Driver
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Door Trim Harness
- OEM Connector: 13597262
- Service Connector: Service by Harness -
- Description: 6 -Way F 0.64 HCM Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 2 |
0.35 |
BN / YE |
780 |
Driver Door Lock Switch Lock Signal |
I |
- |
| 3 |
0.35 |
BN / WH |
781 |
Driver Door Lock Switch Unlock Signal |
I |
- |
| 4 |
0.35 |
BK |
1550 |
Ground |
I |
|
| 5 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 6 |
0.35 |
WH / VT |
3270 |
Driver Door Lock Motor Status Signal |
I |
- |
