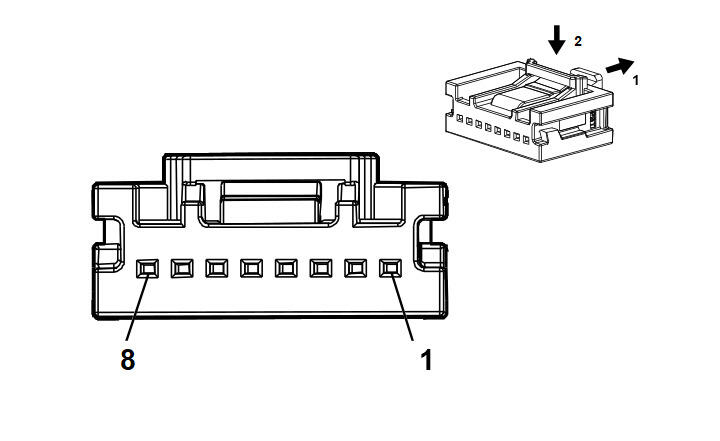

S107 Parking Assist On/Off Switch (UD5)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Floor Console Harness
- OEM Connector: 13507119
- Service Connector: Service by Harness -
- Description: 8 -Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 2 |
0.35 |
BU / BN |
3161 |
Parking Assist Parallel Parking Disable Switch Signal |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GY / GN |
2555 |
Rear Parking Assist Disable Signal |
I |
- |
| 5 |
0.35 |
WH |
6816 |
Indicator Dimming Control |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
GN / BN |
5852 |
Rear Parking Assist Disable LED Signal |
I |
- |
| 8 |
0.35 |
BK |
2250 |
Ground |
I |
- |
