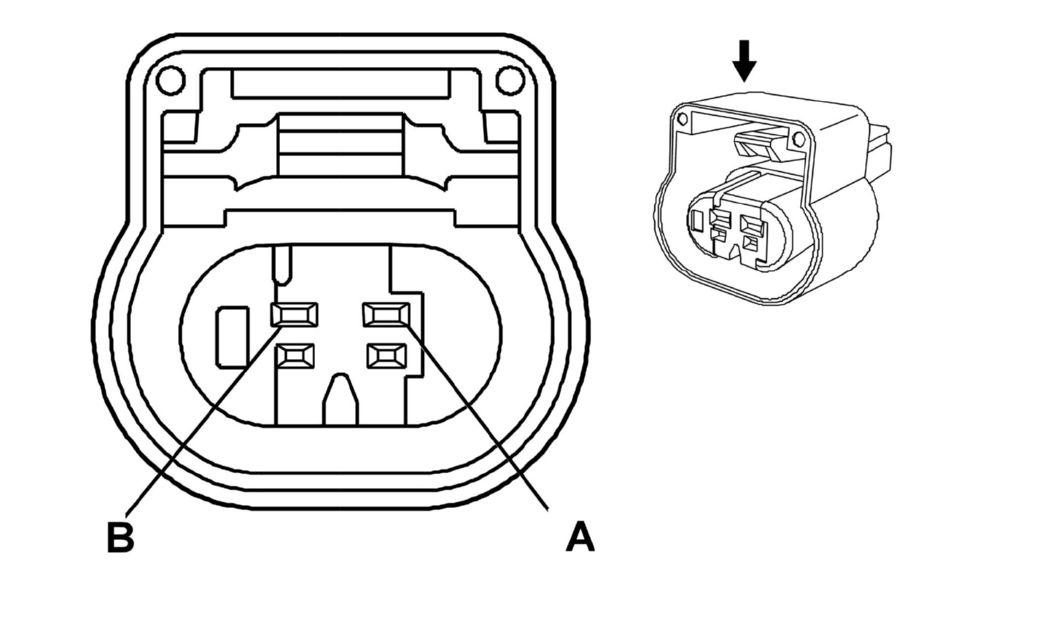

R6A Terminating Resistor - High Speed Bus
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Rear Axle Harness
- OEM Connector: 88988999
- Service Connector: Service by Harness -
- Description: 2 -Way F 150 GT Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
BU |
2500 |
High Speed GMLAN Serial Data [+] 1 |
I |
- |
| B |
- |
WH |
2501 |
High Speed GMLAN Serial Data [-] 1 |
I |
- |
