Q40 Turbocharger Bypass Solenoid Valve
 Courtesy of GENERAL MOTORS COMPANY
|

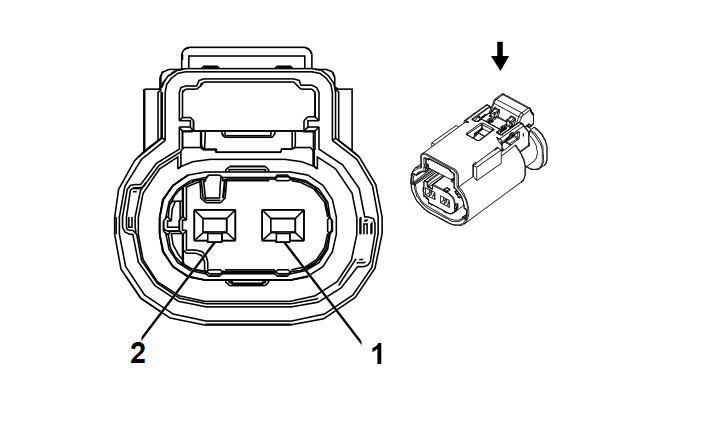

Connector Part Information
- Harness Type: Engine Harness
- OEM Connector: 13503568
- Service Connector: Not Available
- Description: 2 -Way F 1.2 Multilock Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT / BU |
5293 |
Powertrain Main Relay Fused Supply Voltage 4 |
I |
- |
| 2 |
0.5 |
GN |
3060 |
Turbocharger Bypass Solenoid Valve Control Bank 1 |
I |
- |
