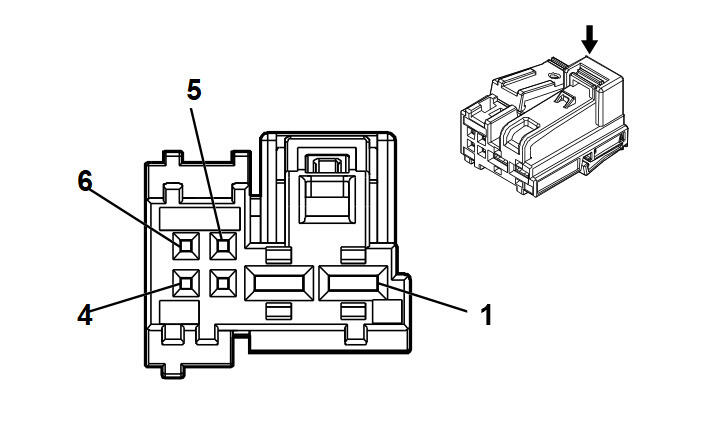

K62 Sunroof Sunshade Motor Module (C3U)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Sunroof Harness
- OEM Connector: 1670575-1
- Service Connector: Service by Harness -
- Description: 6 -Way F 0.64, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
VT / |
5939 |
Sunshade Motor Down Control |
I |
- |
| 2 |
2 |
OG |
5938 |
Sunshade Motor Up Control |
I |
- |
| 3 |
0.35 |
WH |
5034 |
Sunroof Obstruction Sensor Signal 1 |
I |
- |
| 4 |
0.35 |
PU / WH |
128 |
Sunroof Switch Low Reference |
I |
- |
| 5 |
0.35 |
YE |
5124 |
Sunroof Obstruction Sensor Signal 2 |
I |
- |
| 6 |
0.35 |
TN |
5033 |
Sunroof Obstruction Sensor Voltage Reference |
I |
- |
