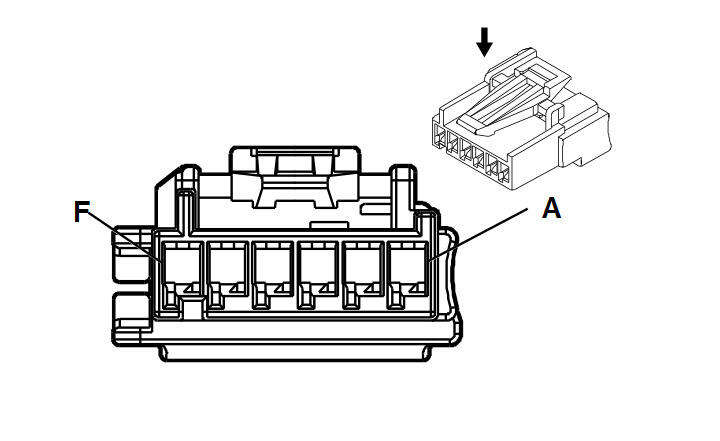

Q8 Control Solenoid Valve Assembly X2 (MNK)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Transmission Harness
- OEM Connector: 13540209
- Service Connector: Service by Harness -
- Description: 6 -Way F 150.2 Micro-Pack Series, Sealed (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
WH / GY |
1786 |
Transmission Park/Neutral Signal 1 |
I |
- |
| B |
0.5 |
BN / WH |
771 |
Transmission Position Switch Bit 1 Signal |
I |
- |
| C |
0.5 |
YE |
772 |
Transmission Position Switch Bit 2 Signal |
I |
- |
| D |
0.5 |
GY |
773 |
Transmission Position Switch Bit 3 Signal |
I |
- |
| E |
0.5 |
WH |
776 |
Transmission Position Switch Parity Bit Signal |
I |
- |
| F |
0.5 |
BK |
50 |
Ground |
I |
- |
