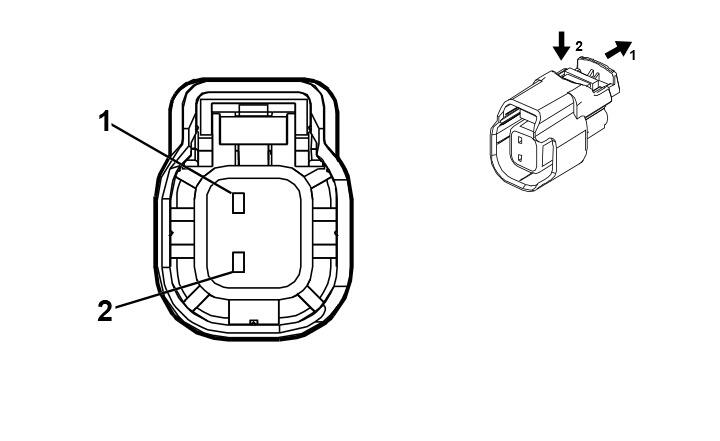

Q17C Fuel Injector 3 (LTG)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Fuel Injector Harness
- OEM Connector: 13580239
- Service Connector: Service by Harness -
- Description: 2 -Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GN |
4803 |
Direct Fuel Injector High Voltage Control Cylinder 3 |
I |
LTG |
| 2 |
0.75 |
GN / GY |
4903 |
Direct Fuel Injector High Voltage Supply Cylinder 3 |
I |
LTG |
