P43 Collision Alert Indicators
 Courtesy of GENERAL MOTORS COMPANY
|

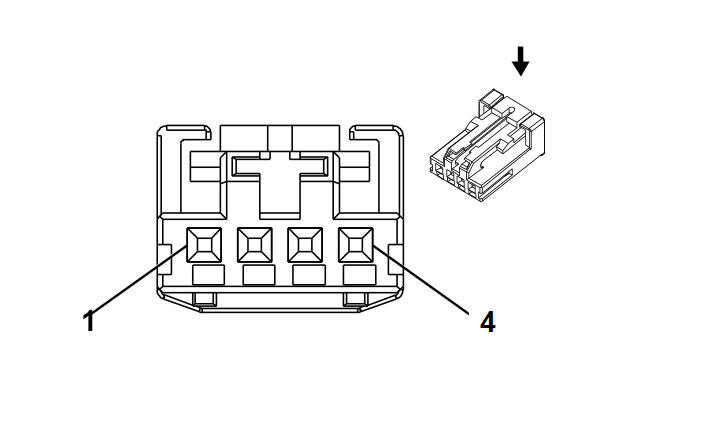

Connector Part Information
- Harness Type: Instrument Panel Harness
- OEM Connector: 13582963
- Service Connector: Not Available
- Description: 4 -Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT / GN |
39 |
Run/Crank Ignition 1 Voltage |
I |
UEU |
| 2 |
0.35 |
GY / YE |
3885 |
Forward Collision Alert LED Control |
I |
UEU |
| 3 |
0.35 |
WH / GN |
3535 |
Reflected LED Display Dimming Control |
I |
UEU |
| 4 |
0.35 |
BK |
1650 |
Ground |
I |
UEU |
