M97 Fuel Fill Door Lock Actuator (SAL)
 Courtesy of GENERAL MOTORS COMPANY
|

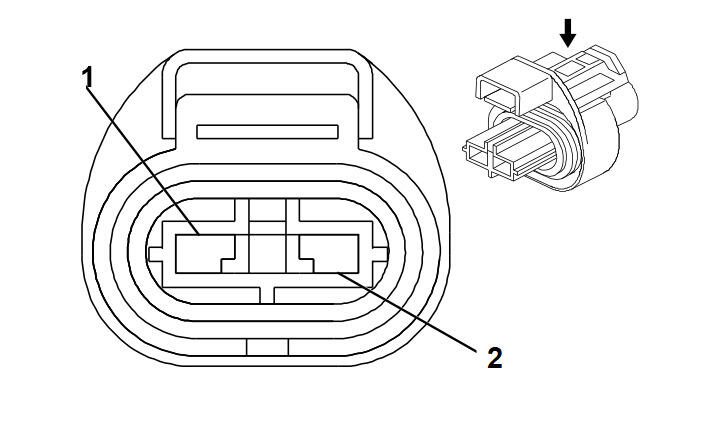

Connector Part Information
- Harness Type: Body Harness
- OEM Connector: 13156102
- Service Connector: Not Available
- Description: 2 -Way F 1.2 Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN / YE |
294 |
Door Lock Actuator Unlock Control |
I |
(SAL-MAH-MBC-MCX)/(Z88+MAM) |
| 2 |
0.75 |
BU / WH |
195 |
Door Lock Control |
I |
(SAL-MAH-MBC-MCX)/(Z88+MAM) |
