M96A Active Grille Air Shutter 1 Actuator
 Courtesy of GENERAL MOTORS COMPANY
|

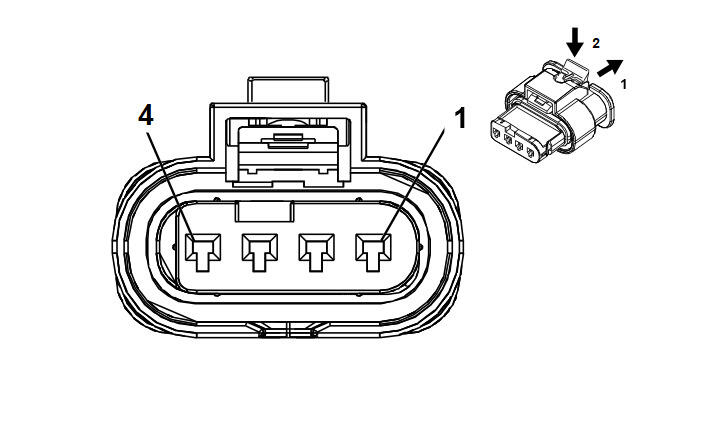

Connector Part Information
- Harness Type: Active Grille Air Shutter Harness
- OEM Connector: 13594673
- Service Connector: Service by Harness -
- Description: 4 -Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT / BU |
5705 |
Powertrain Main Relay Control |
I |
VTI |
| 2 |
0.35 |
GN / VT |
4621 |
Engine Control Module LIN Bus 1 |
I |
VTI |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
BK |
1150 |
Ground |
I |
VTI |
