M77D Outside Rearview Mirror Motor - Driver
 Courtesy of GENERAL MOTORS COMPANY
|

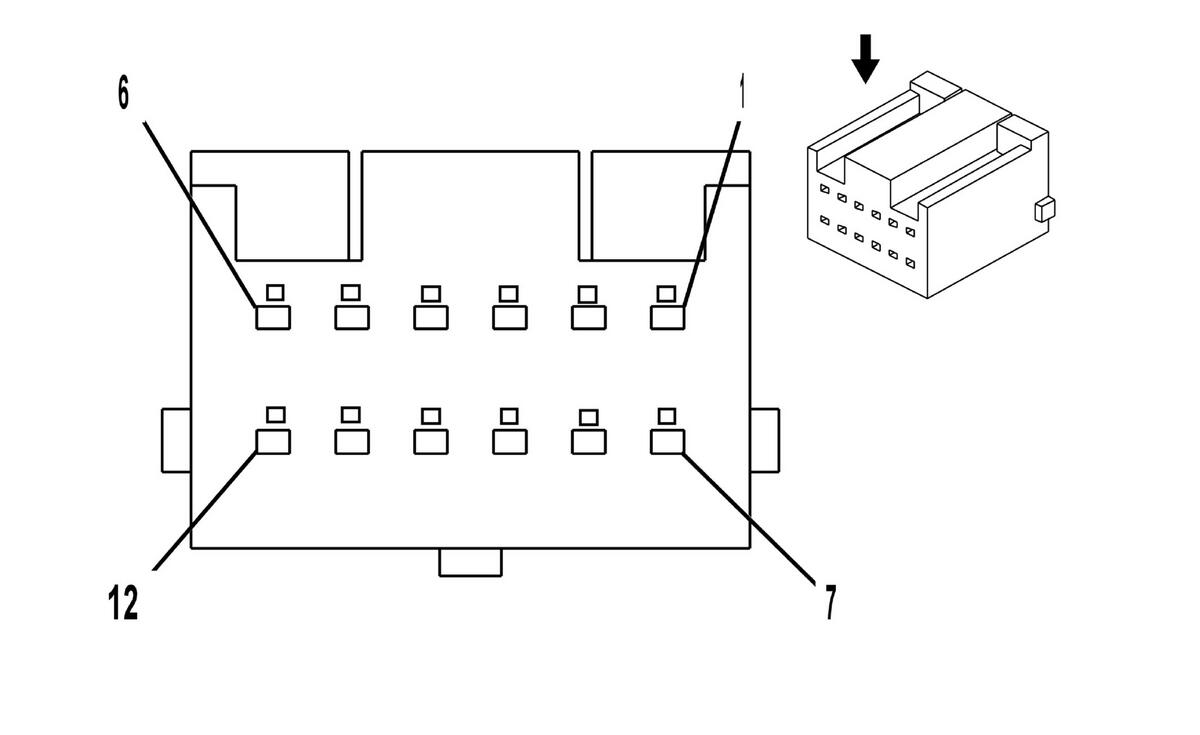

Connector Part Information
- Harness Type: Outside Rearview Mirror Motor - Driver
- OEM Connector: 13504884
- Service Connector: Service by Harness -
- Description: 12 -Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
- |
VT / BU |
3390 |
Driver Outside Rearview Mirror Motor Up [+] Down [-] Control |
I |
- |
| 10 |
- |
BN / BK |
3389 |
Driver Outside Rearview Mirror Motor Right [+] Left [-] Control |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
- |
YE / BN |
3391 |
Driver Mirror Motor Common Control |
I |
- |
