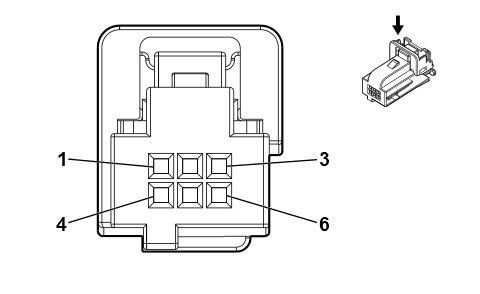

M37 Mode Door Actuator
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: HVAC Harness
- OEM Connector: 15338980
- Service Connector: Service by Harness -
- Description: 6 -Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
YE |
3165 |
Mode Door Actuator Control 1 |
I |
- |
| 2 |
- |
OG |
7572 |
HVAC Door Actuator Control |
I |
- |
| 3 |
- |
WH / RD |
3166 |
Mode Door Actuator Control 2 |
I |
- |
| 4 |
- |
GY / BN |
3167 |
Mode Door Actuator Control 3 |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
- |
GN / WH |
3168 |
Mode Door Actuator Control 4 |
I |
- |
