M32 Differential Clutch Pump (F48)

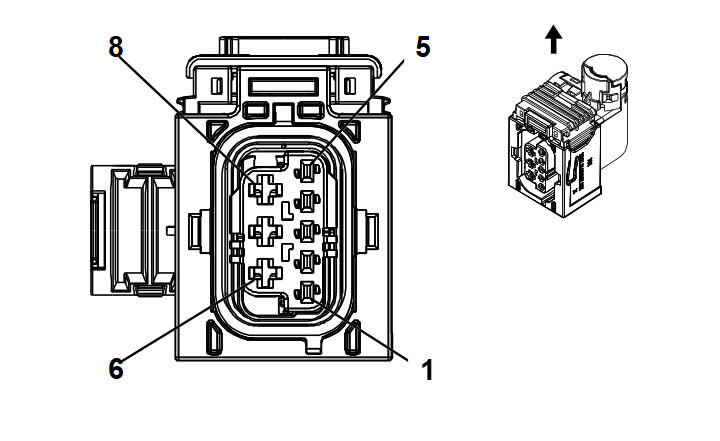

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not Available | No Tool Required | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | VT / WH | 908 | Differential Clutch Pump Motor Hall-Effect Sensor Supply Voltage | I | - |
| 2 | - | BU / OG | 906 | Differential Clutch Pump Motor Hall-Effect Sensor Signal 2 | I | - |
| 3 | - | BU | 907 | Differential Clutch Pump Motor Hall-Effect Sensor Signal 3 | I | - |
| 4 | - | BU / WH | 905 | Differential Clutch Pump Motor Hall-Effect Sensor Signal 1 | I | - |
| 5 | - - |
BK VT |
2550 904 |
Ground Ground Differential Clutch Pump Motor Hall-Effect Sensor Low Reference |
I | - - |
| 6 | - | RD / WH | 903 | Differential Clutch Pump Motor U-Phase | I | - |
| 7 | - | RD | 901 | Differential Clutch Pump Motor W-Phase | I | - |
| 8 | - | RD / BK | 902 | Differential Clutch Pump Motor V-Phase | I | - |
