M115 Power Transfer Unit Shift Actuator X1 (F48)
 Courtesy of GENERAL MOTORS COMPANY
|

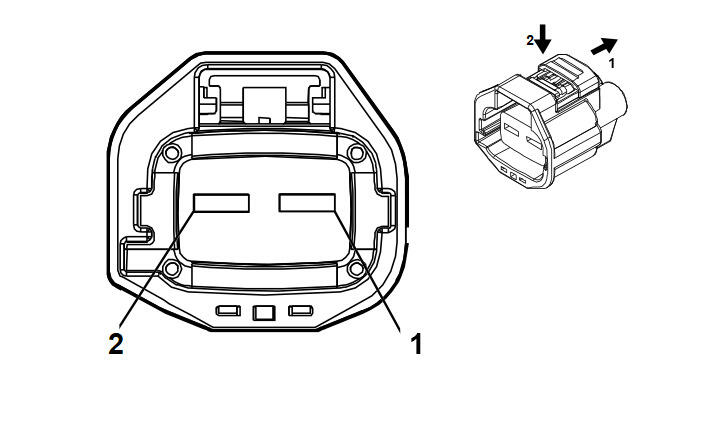

Connector Part Information
- Harness Type: Engine Harness
- OEM Connector: 13596768
- Service Connector: Not Available
- Description: 2 -Way F 6.3 Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BN / GN |
3945 |
All Wheel Drive Power Transfer Unit Motor Control B |
I |
F48 |
| 2 |
2.5 |
VT / BN |
3944 |
All Wheel Drive Power Transfer Unit Motor Control A |
I |
F48 |
