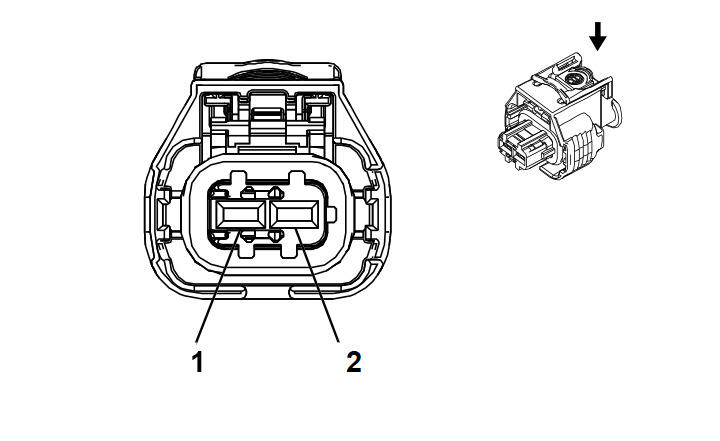

M104R Park Brake Actuator - Right
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Chassis Harness
- OEM Connector: 13343445
- Service Connector: Service by Harness -
- Description: 2 -Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
GN / VT |
1988 |
Right Park Brake Motor Apply Control |
I |
- |
| 2 |
2.5 |
GY |
4368 |
Right Park Brake Motor Low Reference |
I |
- |
