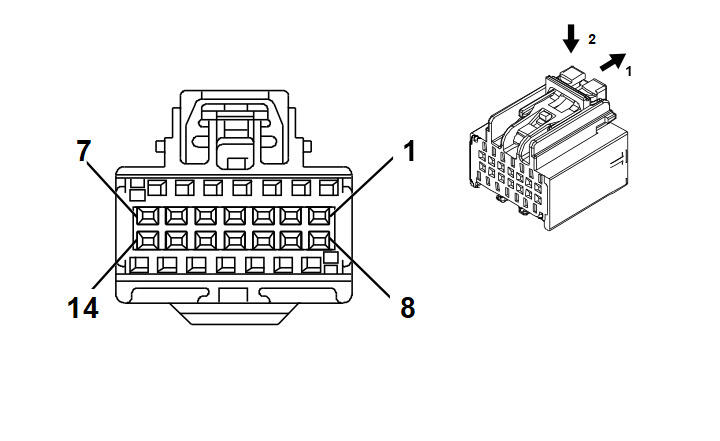

K182 Parking Assist Control Module X3 (UD5/UFQ)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Body Harness OEM Connector: 13593897 Service Connector: Not Available Description: 14 -Way F 0.64 Kaizen Series (BU)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	13575867	J-35616-64B (LT BU)	J-38125-215A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	YE / VT	5213	Front Left/Right/Middle Parking Assist Sensor	I	(UD5/UFQ)
2	-	-	-	Not Occupied	-	-
3	0.35	GY	3154	Left Front Advanced Parking Assist Side Object Sensor Signal	I	UFQ
4	0.35	VT / WH	5215	Left Front Outer Parking Assist Sensor	I	(UD5/UFQ)
5	0.35	YE / GY	5216	Left Front Middle Parking Assist Sensor	I	(UD5/UFQ)
6 - 7	-	-	-	Not Occupied	-	-
8	0.35	BK / BU	5214	Front Parking Assist Sensor Low Reference	I	(UD5/UFQ)
9	-	-	-	Not Occupied	-	-
10	0.35	GN	3155	Right Front Advanced Parking Assist Side Object Sensor Signal	I	UFQ
11	0.35	WH / GY	5217	Right Front Outer Parking Assist Sensor	I	(UD5/UFQ)
12	0.35	VT / GY	5218	Right Front Middle Parking Assist Sensor	I	(UD5/UFQ)
13 - 14	-	-	-	Not Occupied	-	-
