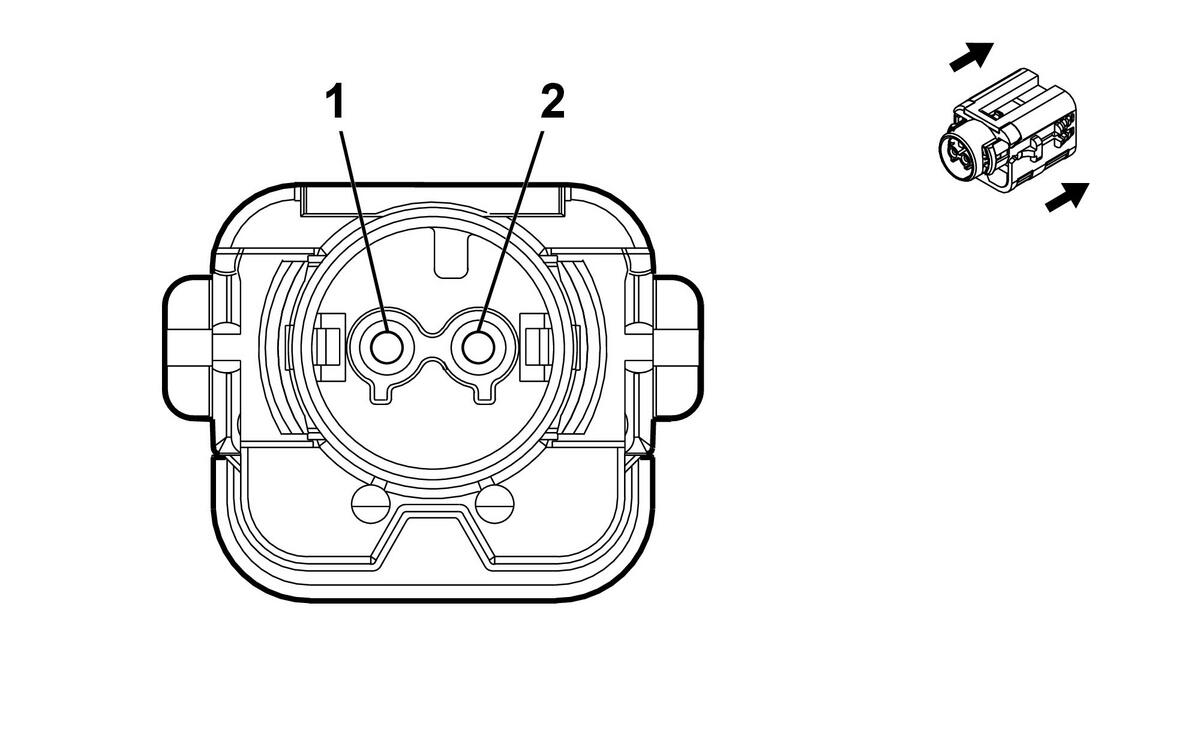

F113D Seat Belt Anchor Pretensioner - Driver
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat Harness
- OEM Connector: 35212937
- Service Connector: Service by Harness -
- Description: 2 -Way F ABX-5 Series (PU with YE Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG / YE |
3481 |
Driver Seat Belt Anchor Pretensioner High Control |
I |
AJG |
| 2 |
0.5 |
VT / OG |
3482 |
Driver Seat Belt Anchor Pretensioner Low Control |
I |
AJG |
