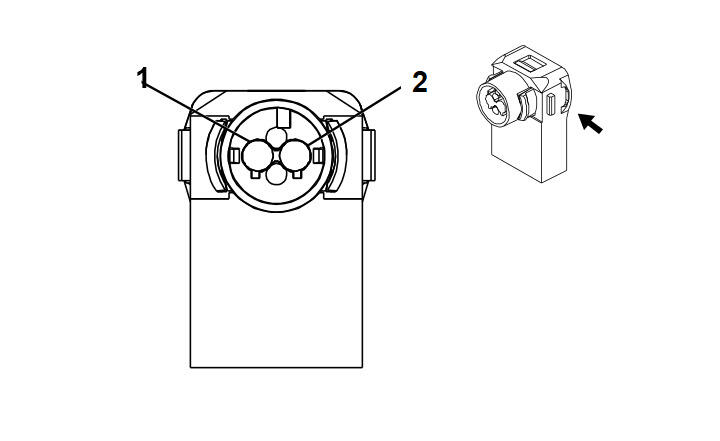

F112D Seat Belt Retractor Pretensioner - Driver

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Body Harness OEM Connector: 33345774 Service Connector: 19355490 Description: 2 -Way F ABX-5 Series (PU with YE Cover)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not Available	No Tool Required	Not Available
II	Not required	J-35616-64B (LT BU)	No Tool Required
II	Not required	J-35616-64B (LT BU)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35 0.35 0.1 -	OG / WH OG / WH OG / WH OG / GN	3477 3477 3477 3477	Driver Seat Belt Retractor Pretensioner High Control Driver Seat Belt Retractor Pretensioner High Control Driver Seat Belt Retractor Pretensioner High Control Driver Seat Belt Retractor Pretensioner High Control	II II II I	AJG AY0 EARLY LATE
2	0.35 0.35 0.1 -	GY / OG GY / OG GY / OG WH / OG	3478 3478 3478 3478	Driver Seat Belt Retractor Pretensioner Low Control Driver Seat Belt Retractor Pretensioner Low Control Driver Seat Belt Retractor Pretensioner Low Control Driver Seat Belt Retractor Pretensioner Low Control	II II II I	AJG AY0 EARLY LATE
