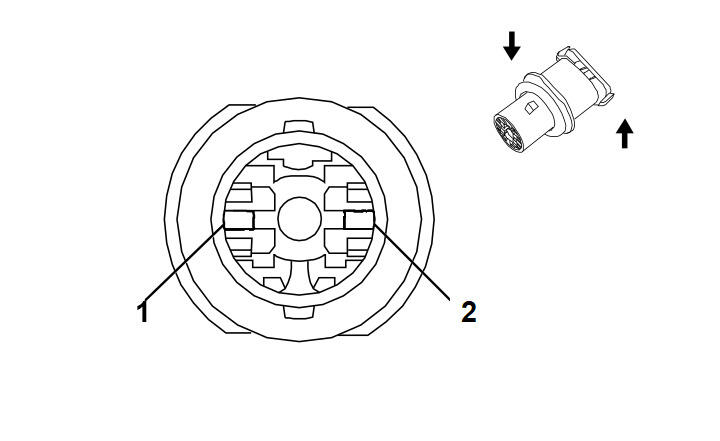

E7R License Plate Lamp - Right (D2UG)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: License Lamp Harness
- OEM Connector: 13698133
- Service Connector: Service by Harness -
- Description: 2 -Way F Lamp Socket Wedge Base, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Pending |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
2550 |
Ground |
I |
Z88 |
| 2 |
0.35 |
GN / YE |
6846 |
Rear License Plate Lamp Control |
I |
Z88 |
