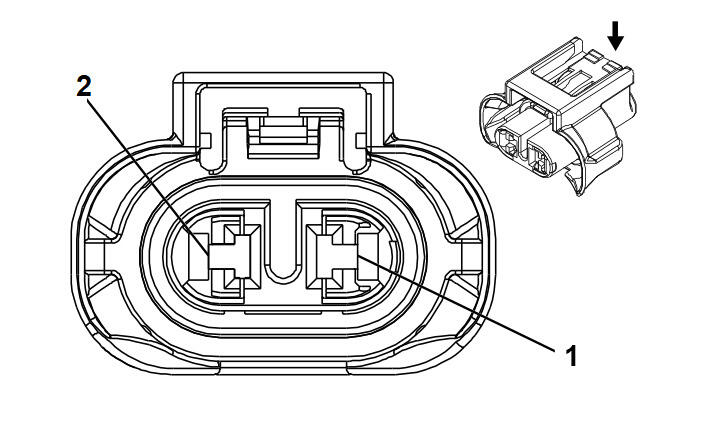

E29RF Fog Lamp - Right Front (T3U+D2UG)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Front Fascia Harness
- OEM Connector: 13596700
- Service Connector: Service by Harness -
- Description: 2 -Way F 2.8 APEX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BN / VT |
2234 |
Front Fog Lamp Control |
I |
Z88+T3U |
| 2 |
1.5 |
BK |
2050 |
Ground |
I |
Z88+T3U |
