E14F Seat Heating Element - Left Rear Cushion (KA6)
 Courtesy of GENERAL MOTORS COMPANY
|

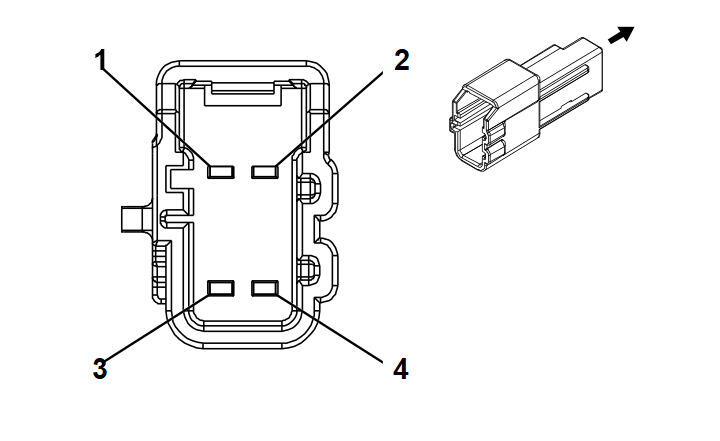

Connector Part Information
- Harness Type: Left Rear Seat Harness
- OEM Connector: 993427
- Service Connector: Service by Harness -
- Description: 4 -Way M 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-13 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
GY |
2294 |
Left Rear Seat Cushion Heating Element Control |
I |
- |
| 2 |
0.5 |
RD / YE |
7047 |
Left Rear Seat Cushion Temperature Sensor Signal |
I |
- |
| 3 |
0.5 |
BU / WH |
7048 |
Left Rear Cushion Thermistor Feedback Signal |
I |
- |
| 4 |
0.75 |
BK |
2295 |
Left Rear Seat Cushion Heating Element Low Reference |
I |
- |
