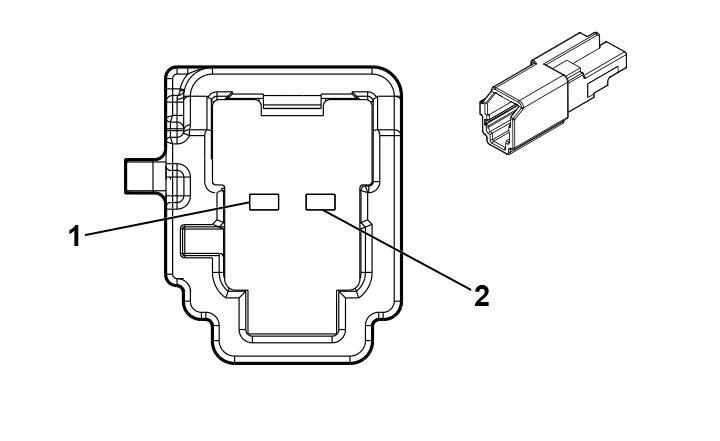

B88MR Seat Belt Switch - Rear Middle
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Harness
- OEM Connector: 13530129
- Service Connector: Not Available
- Description: 2 -Way M 1.2 MCON Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK / OG |
1361 |
Passenger Seat Belt Switch Low Reference |
I |
UH5+(AJG) |
| 2 |
0.35 |
BU / OG |
5163 |
Rear Center Seat Belt Switch Signal |
I |
UH5+(AJG) |
