B77LF Radio Volume Compensator Interior Noise Microphone - Left Front (NKC)
 Courtesy of GENERAL MOTORS COMPANY
|

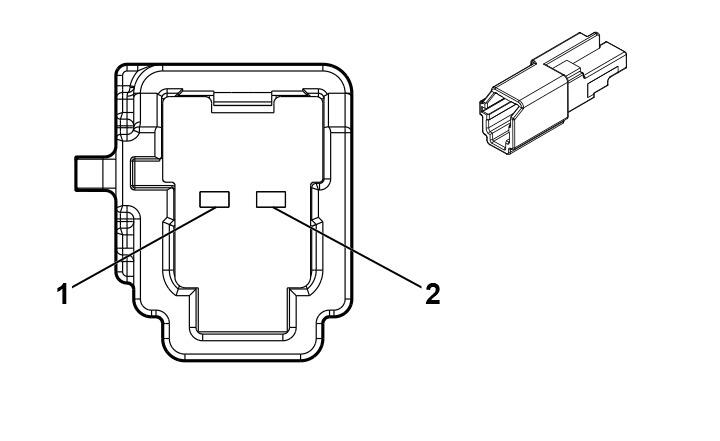

Connector Part Information
- Harness Type: Headliner Harness
- OEM Connector: 13530128
- Service Connector: Not Available
- Description: 2 -Way M 1.2 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN / BK |
3008 |
Active Noise Cancellation Microphone 1 Feedback Signal |
I |
NKC |
| 2 |
0.35 |
GN / BN |
3005 |
Active Noise Cancellation Microphone 1 Signal |
I |
NKC |
