B65 Intake Manifold Pressure and Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

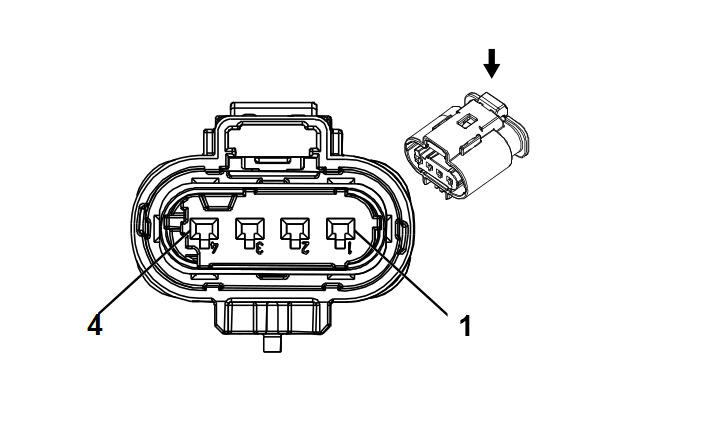

Connector Part Information Harness Type: Engine Harness OEM Connector: 13503575 Service Connector: Not Available Description: 4 -Way F 1.2 Multilock Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (LT GN)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	WH / BU	7329	Pre-Throttle Air Temperature Signal	I	-
2	0.5 0.5	GY / RD BK / VT	2704 7331	Manifold Absolute Pressure Sensor 5V Reference Turbocharger Inlet Absolute Pressure Sensor 5 Volt Reference 2	I I	(LYX)+(E88) E80+LYX
3	0.5 0.5	BK / GN GY / RD	469 7332	Manifold Absolute Pressure Sensor Low Reference Turbocharger Inlet Absolute Pressure Sensor 5 Volt Feedback Signal 2	I I	(LYX)+(E88) E80+LYX
4	0.5 0.5	GN / WH VT / BU	432 7330	Manifold Absolute Pressure Sensor Signal Turbocharger Inlet Absolute Pressure Sensor Signal 2	I I	(LYX)+(E88) E80+LYX
