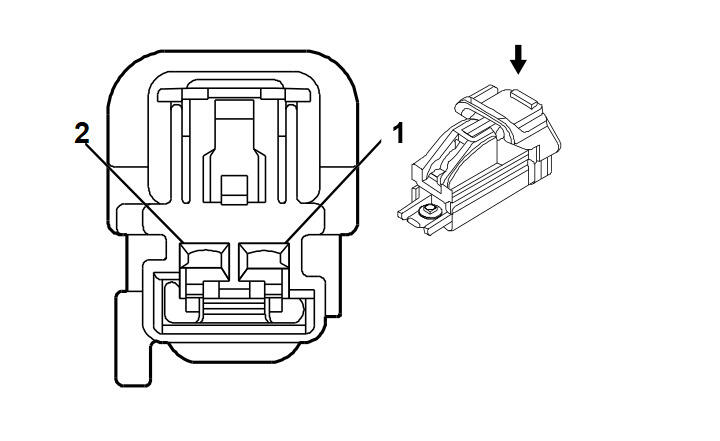

B60 Passenger Presence Sensor
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Passenger Seat Harness
- OEM Connector: 7283-6443-40
- Service Connector: Service by Harness -
- Description: 2 -Way F 1.5 YESC Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG / BN |
7571 |
Passenger Seat Belt Reminder Signal |
I |
- |
| 2 |
0.5 |
BK / OG |
1361 |
Passenger Seat Belt Switch Low Reference |
I |
- |
