B316 Transmission Park Valve Position Switch (M3H/M3U)
 Courtesy of GENERAL MOTORS COMPANY
|

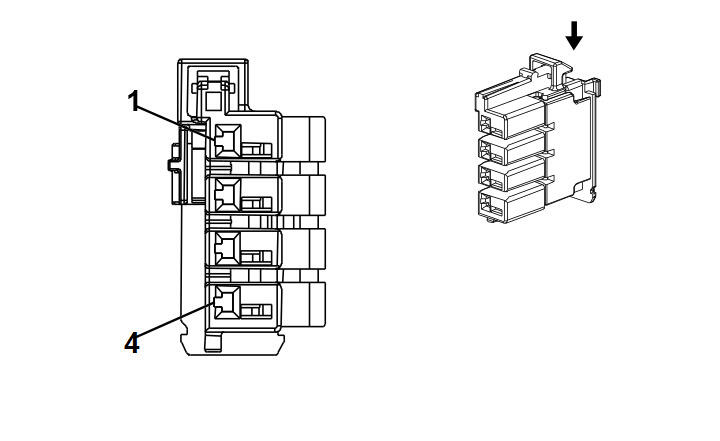

Connector Part Information
- Harness Type: Transmission Harness
- OEM Connector: 13514144
- Service Connector: Service by Harness -
- Description: 4 -Way F 1.2 MCON Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE / GN |
4170 |
Transmission Output Shaft Speed Sensor Circuit 9V Reference |
I |
- |
| 2 |
0.5 |
WH / YE |
6319 |
Electronic Transmission Range Select Out of Park Switch 2 Signal |
I |
- |
| 3 |
0.5 |
VT / YE |
6317 |
Electronic Transmission Range Select Out of Park Switch Signal |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
