B111B Turbocharger Boost/Intake Air Temperature Sensor (LTG)
 Courtesy of GENERAL MOTORS COMPANY
|

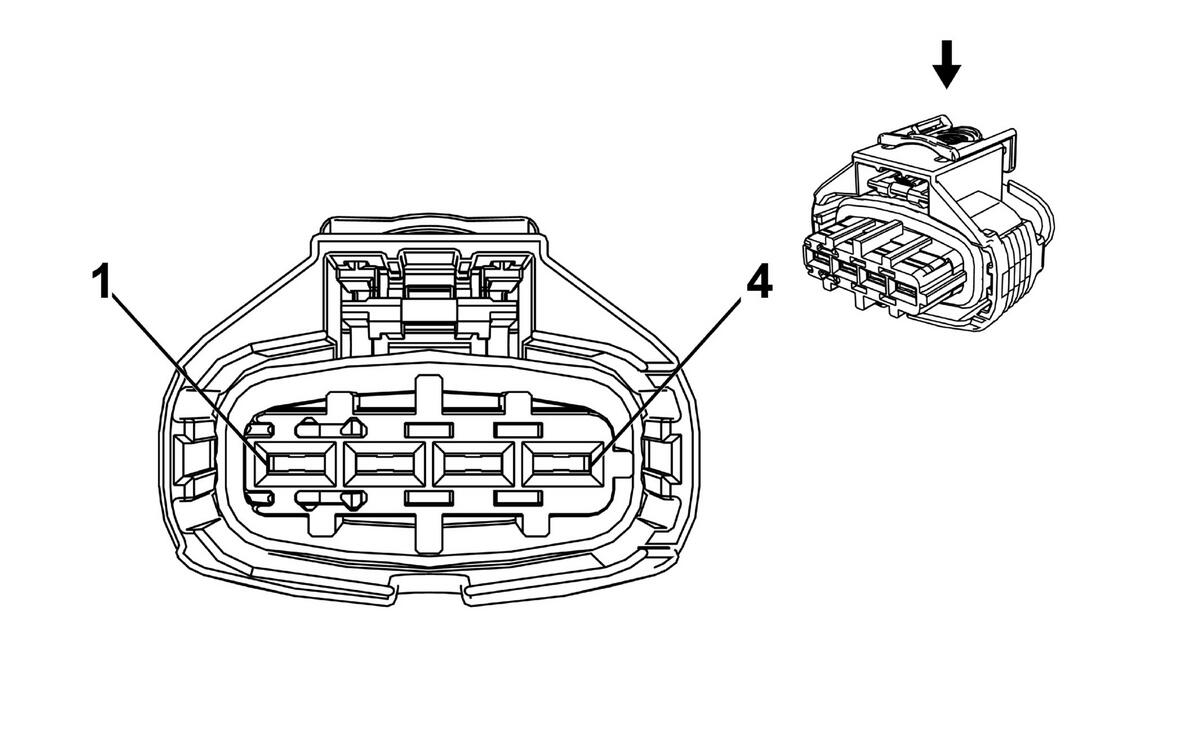

Connector Part Information
- Harness Type: Engine Harness
- OEM Connector: 13343438
- Service Connector: 13584423
- Description: 4 -Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY / RD |
7332 |
Turbocharger Inlet Absolute Pressure Sensor 5 Volt Feedback Signal 2 |
I |
LTG |
| 2 |
0.5 |
WH / BU |
7329 |
Pre-Throttle Air Temperature Signal |
I |
LTG |
| 3 |
0.5 |
BK / VT |
7331 |
Turbocharger Inlet Absolute Pressure Sensor 5 Volt Reference 2 |
I |
LTG |
| 4 |
0.5 |
VT / BU |
7330 |
Turbocharger Inlet Absolute Pressure Sensor Signal 2 |
I |
LTG |
