B107 Accelerator Pedal Position Sensor
 Courtesy of GENERAL MOTORS COMPANY
|

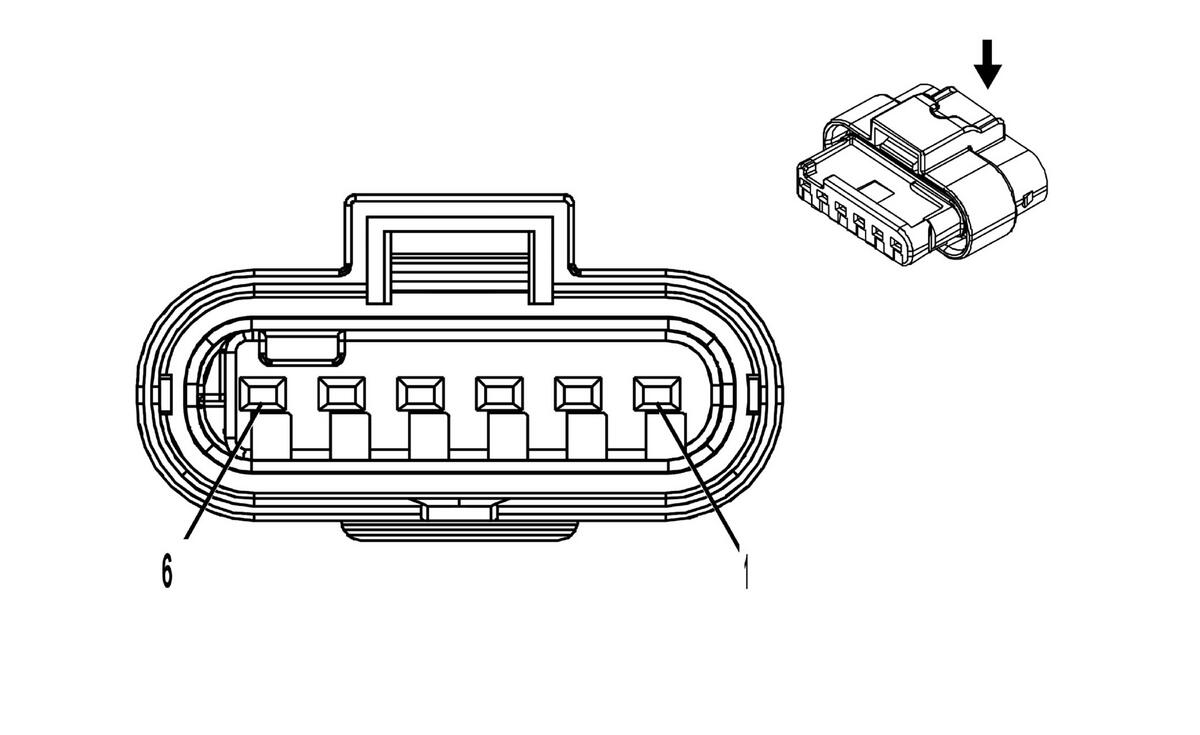

Connector Part Information
- Harness Type: Instrument Panel Harness
- OEM Connector: 13580188
- Service Connector: Not Available
- Description: 6 -Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN / RD |
1274 |
Accelerator Pedal Position 5V Reference 2 |
I |
- |
| 2 |
0.5 |
WH / RD |
1164 |
Accelerator Pedal Position 5V Reference 1 |
I |
- |
| 3 |
0.5 |
YE / WH |
1161 |
Accelerator Pedal Position Signal 1 |
I |
- |
| 4 |
0.5 |
BK / BU |
1271 |
Accelerator Pedal Position Low Reference 1 |
I |
- |
| 5 |
0.5 |
BK / VT |
1272 |
Accelerator Pedal Position Low Reference 2 |
I |
- |
| 6 |
0.5 |
GN / WH |
1162 |
Accelerator Pedal Position Signal 2 |
I |
- |
