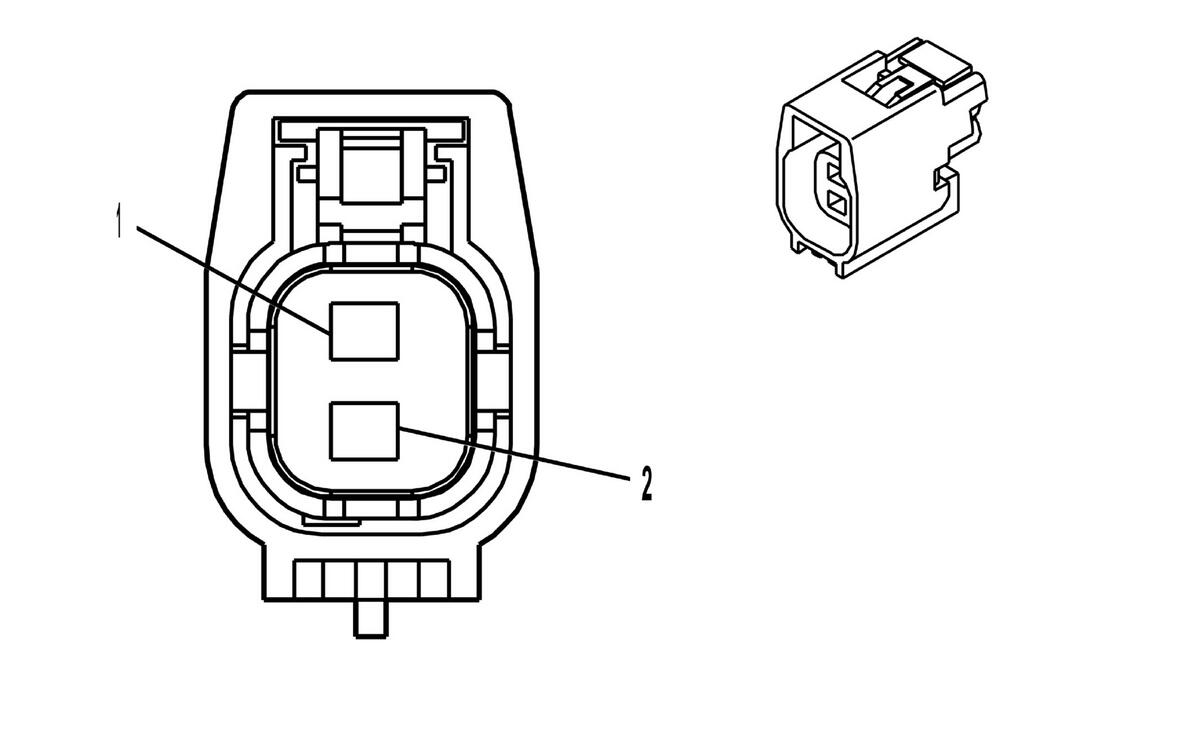

B5RR Wheel Speed Sensor - Right Rear
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Chassis Harness
- OEM Connector: 19153615
- Service Connector: Service by Harness -
- Description: 2 -Way F 1.5 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY / YE |
7128 |
Right Rear Wheel Speed Sensor Control |
I |
- |
| 2 |
0.35 |
VT |
882 |
Right Rear Wheel Speed Sensor Signal |
I |
- |
